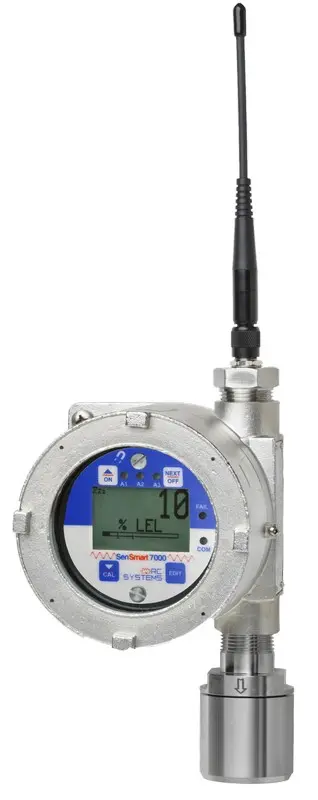

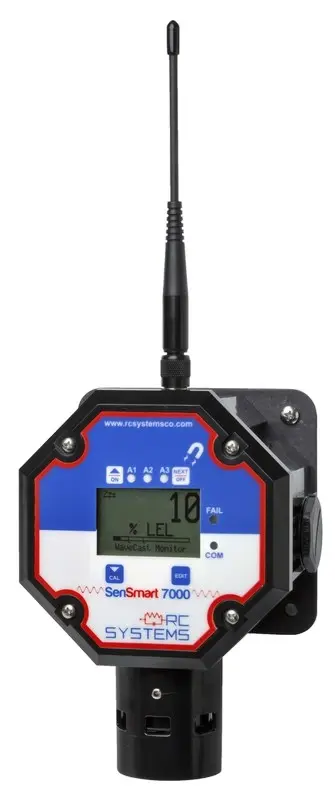

SenSmart 7100 EC Gas Detector

With an ultra-low power design and easy to use features, the SenSmart 7100 is compatible with all our toxic gas detection sensors, including those for
hydrogen sulfide, carbon dioxide, oxygen, hydrogen cyanide, and many others.

RC Systems’ battery-powered SenSmart 7100 EC wireless gas detector is the most advanced, economical, and reliable true wireless combustible and toxic gas detection solution available today.

The The SenSmart 7100 EC wireless gas detector is CSA Certified for Class 1, Division 2 hazardous locations.

Features & Highlights of the SenSmart 7100 EC

  • D-cell lithium battery powered for up to 9 months of oxygen/toxic gas detection
  • Available for both 900Mhz and 2.4Ghz
  • Typical >1 mile range with local dipole antenna (900Mhz)
  • Frequency-hopping spread spectrum (FHSS) technology
  • 3 adjustable independent alarm levels per sensor
  • 5 LED indicators for alarms & communication status updates
  • Transmits all setup information to wireless receiver
  • Detected gas data transmits on 6 second intervals
  • Graphic display shows values, units, trend graph, alarm levels
  • Auto-recognition of Smart Sensors uploads calibration data & more
  • Security settings to lock critical parameters
  • Fault supervision circuitry detects failed sensors & transmits warnings
  • Setup in hazardous areas requires only simple magnetic wand
  • Power ON/OFF using magnetic wand only
  • Magnetic mount option available
  • Externally powered option available
Use the configurator below to request a quote on a SenSmart combustible and toxic gas detector for your application. Contact RC Systems to place your order or to learn more.
Configure Your SenSmart 7100 EC Gas Detector
