SenSmart 7300 IR
[7300AL-24-5-1028/100L/L1]

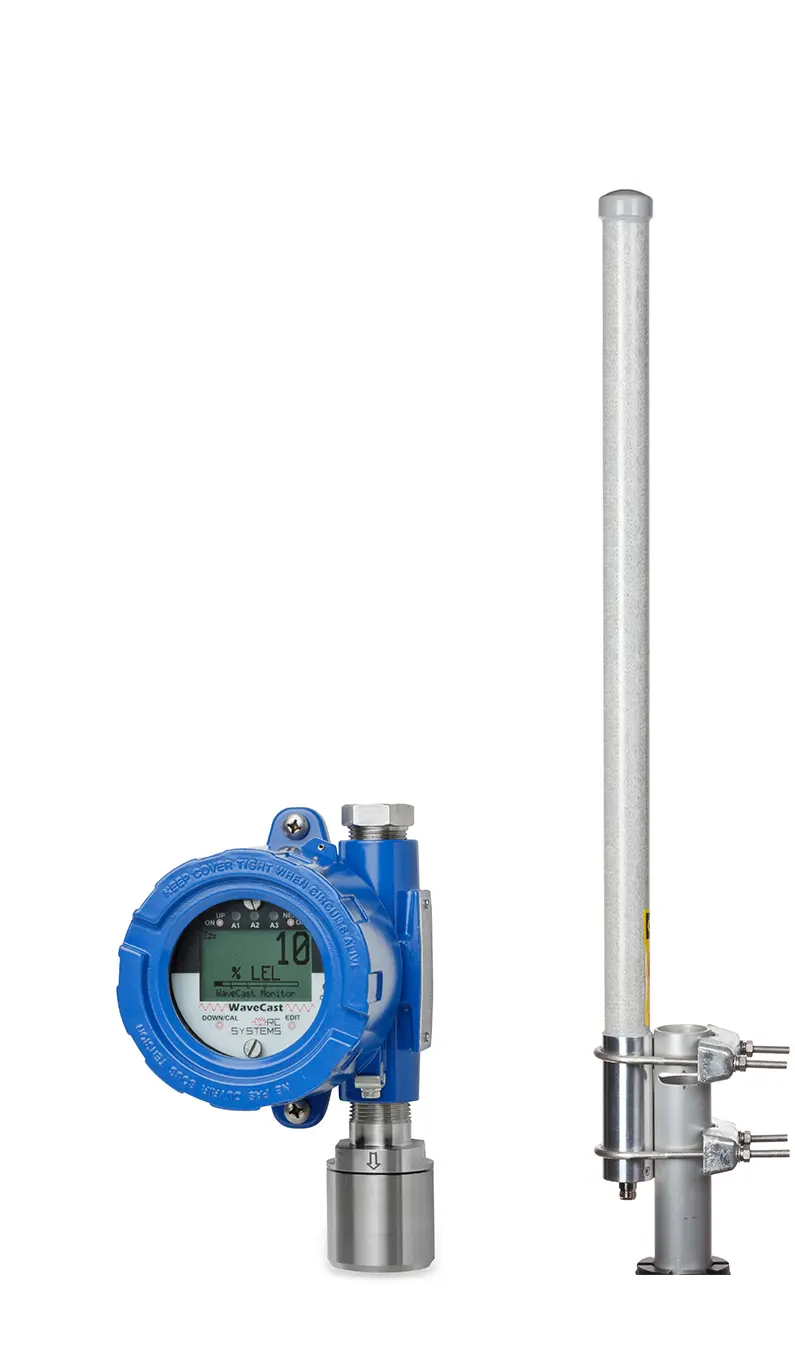

SenSmart 7300 IR
The battery-powered SenSmart 7300 wireless gas detector, with ultra-low power design and easy to use features, provides the most advanced, economical and reliable true wireless combustible gas detection solution. The SenSmart 7300 is compatible with the new low-power infrared sensor for hydrocarbon combustibles.









FEATURES HIGHLIGHT

  • CSA Certified for Class 1, Division 2 hazardous locations
  • D-cell lithium battery powered for up to 9 months Toxic/Oxygen and 6 months LEL operation
  • Available for both 900Mhz and 2.4Ghz
  • Frequency-Hopping Spread Spectrum (FHSS) technology
  • Typical > 1 mile range with local dipole antenna (900Mhz)
  • Detected gas data transmits on six second intervals
  • Graphic display shows values, units, trend graph, alarm levels
  • Power ON / Power OFF using magnetic wand only
  • Non-intrusive, user-prompted calibration procedure
  • Transmits all setup information to Wireless Receiver
  • Security settings to lock critical parameters
  • Auto-recognition of Smart Sensors uploads calibration data and more
  • Fault supervision circuitry detects failed sensor and transmits warning
  • Setup in hazardous area requires only simple magnetic wand
  • Magnetic mount option available
  • Three adjustable independent alarm levels per sensor
  • ​5 LEDs indicate alarms and communication status
Specifications
  • Area Classification: Division 2 Non-Incendive
  • Enclosure Type: Aluminum
  • External/Battery Powered Model: Battery Powered
  • 2.4GHz or 900MHz Radio Frequency: 2.4GHz Radio (International Applications)
  • Antenna: 1000-2312 Fiberglass 9dBi Collinear
  • Gas Type: Methane
  • Sensor Type: 10-1028 Smart Sensor, Low Power IR, Methane
  • Sensor Range: 0-100% LEL
  • Sensor Location: Local Mount with Splash Guard
