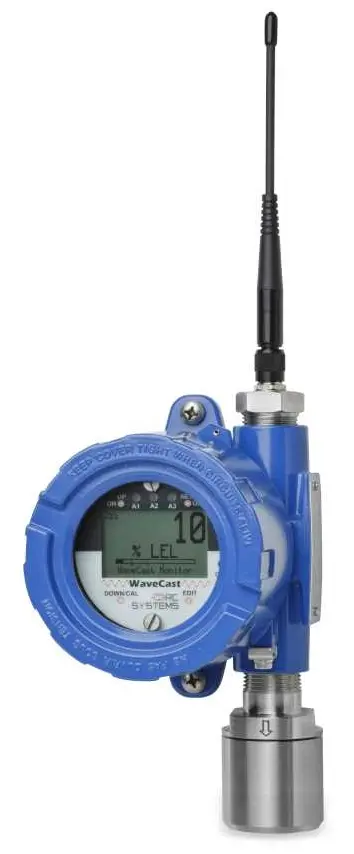

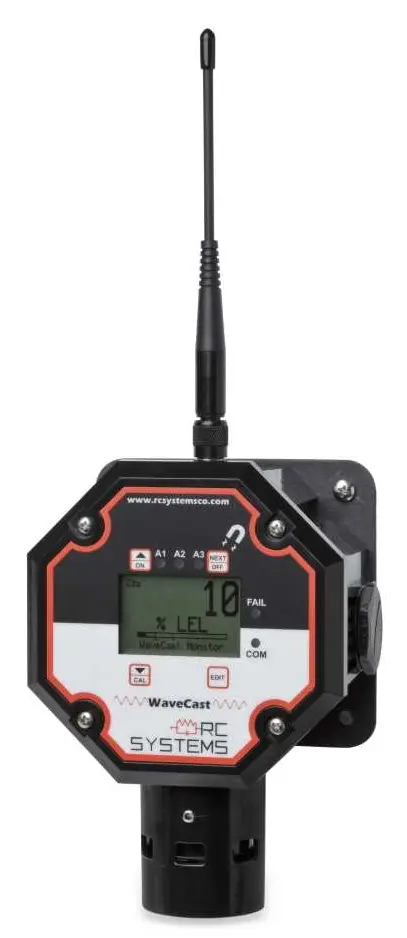

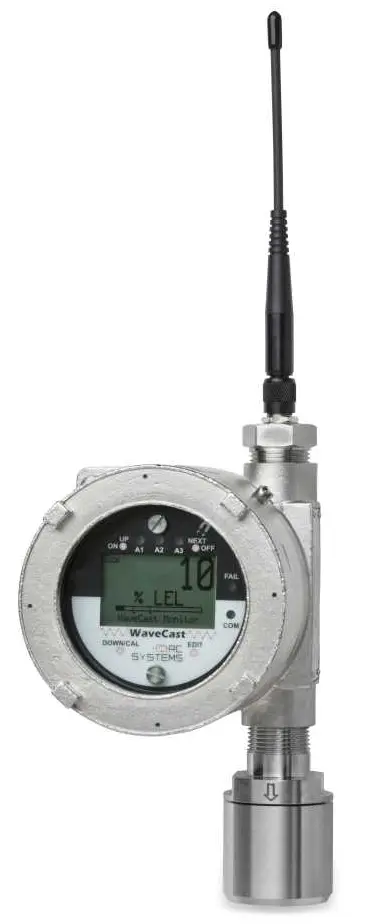

SenSmart 7300 IR Combustible Gas Detector

RC Systems’ battery-powered SenSmart 7300 IR wireless gas detectors provide the most advanced, economical, and reliable true-wireless combustible gas detection. These easy to use, ultra-low power devices are compatible with new low-power infrared sensors for hydrocarbon combustibles.
These SenSmart gas detection sensors are CSA certified for Class 1, Division 2 hazardous locations. Setup in hazardous areas requires only a simple magnetic wand.
Use the configurator below to request a quote on the SenSmart 7300 IR combustible gas detector you need. Contact RC Systems to place your order or to learn more.

Features of SenSmart 7300 IR Gas Detectors

  • CSA certified for Class 1, Division 2 hazardous locations
  • Setup in hazardous area requires only simple magnetic wand
  • Power ON/OFF using magnetic wand only
  • D-cell lithium battery powered for up to 6 months LEL operation
  • Available for both 900Mhz and 2.4Ghz
  • Frequency-Hopping Spread Spectrum (FHSS) technology
  • Transmits all setup information to wireless receiver
  • Typical > 1 mile range with local dipole antenna (900Mhz)
  • Detected gas data transmits on six second intervals
  • Graphic display shows values, units, trend graph, alarm levels
  • Non-intrusive, user-prompted calibration procedure
  • Auto-recognition of Smart Sensors uploads calibration data and more
  • Security settings to lock critical parameters
  • 5 LEDs indicate alarms and communication status
  • Three adjustable independent alarm levels per sensor
  • Fault supervision circuitry detects failed sensor and transmits warnings
  • Magnetic mount option available
Configure Your SenSmart 7300 IR Combustible Gas Detector
Part Number:
Minimum Order Quantity is 1

Minimum Order Quantity is 1
