SenSmart 1100 EC
[1100-9503/200P/0-0]

SenSmart 1100 EC
SenSmart 1100 EC

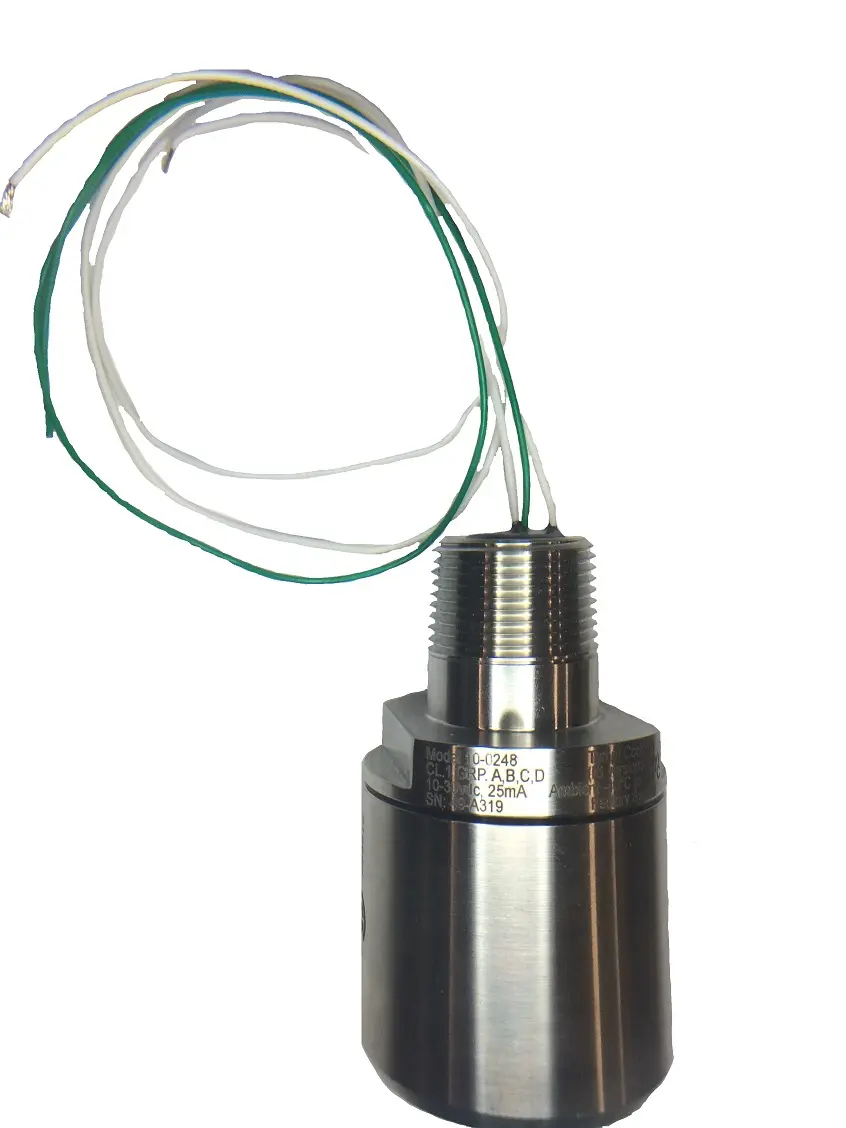

The RC Systems Model SenSmart 1100 is a 2-wire 4-20mA Sensor Transmitter. It accepts low power toxic or oxygen electrochemical sensor modules and functions in a 2-wire 4-20mA “sink” mode to transmit gas values to an appropriate receiver device.






FEATURES HIGHLIGHT

  • Field replaceable toxic/oxygen sensor module
  • Range and target gas configured on sensor module
  • Improves system noise immunity because low level sensor signals are protected within the stainless steel sensor head
  • Industry standard 4-20mA signal may be transmitted thousands of feet on 2-wires
  • Suitable for Division 1 and 2 hazardous areas. May be installed as an intrinsically safe device with a barrier, or, explosion-proof for NEMA 7 installations
  • Missing sensor forces <2mA FAULT indication
  • Designed for use with our 1, 2, 4,16 or 64 channel Controllers. Calibration is not possible at the ST-49 and may only be performed at the 4-20mA receiver4-20mA receiver
  • 2-wire 4-20mA signal is nonpolar with protective “steering diode” interface
  • Standard “Fault Supervision” circuitry continuously monitors for failed sensor.4-20mA output transmits <2mA during failures.
Specifications
  • Area Classification: Division 1 Explosion Proof
  • Remote Junction Box: No Junction Box
  • Gas Type: Carbon Monoxide
  • Sensor Type: 10-9503 Sensor, EC, Carbon Monoxide
  • Sensor Range: 0-200ppm
  • Splash Guard: No Splash Guard
  • Intrinsically Safe Barrier: Barrier Not Required for Explosion Proof Applications
