Ammonia Gas Leak Detectors for Refrigeration Systems

Many industries, including petrochemical refining, cold storage, and food processing, rely on large-scale refrigeration systems for their day-to-day operations and ammonia is the most common choice of refrigerant. Household ammonia products that most of us are familiar with are ammonium hydroxide (water-based). However, since water freezes, refrigeration-grade anhydrous ammonia (free of water and impurities) is required for refrigeration applications. Keeping the ammonia pure and free of water is extremely important for such systems.

RC Systems' Recommendation:


Application Fields:

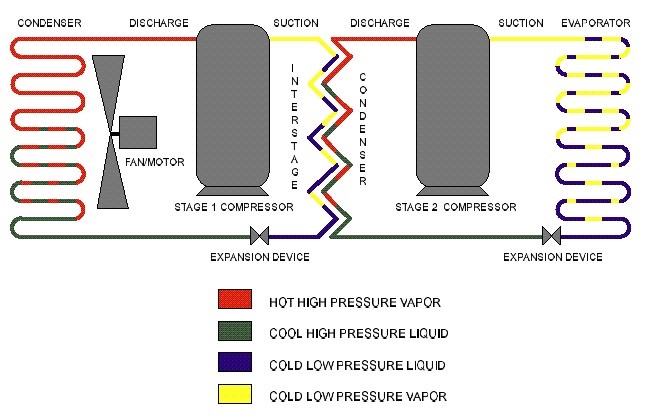

  • Food and beverage production, processing, and storageDiagram of a refrigeration system that uses an ammonia gas refrigerant
  • Refrigerated vehicles for transportation on the road, train, and ships, LNG/LPG vessels
  • HVAC in public buildings
  • Chemical industry
  • Sports, ice arenas, and rinks
  • Schools, laboratories, and hospitals

What makes ammonia suitable for refrigeration?

  • According to the International Institute of Ammonia Refrigeration (IIAR), the physical properties of ammonia make it 3-10% more efficient than competitive refrigerants.
  • It breaks down quickly in the air, unlike CFCs, and doesn’t damage the ozone layer.
  • Leaks and spills are identified far below hazardous levels because of its strong odor. People can smell it at about 20 ppm while other refrigerants have no odor, allowing leaks to go undetected.

What are the problems with using ammonia in refrigeration?

  • Vapor-compression refrigeration requires high pressure to compress the gas into a liquid, meaning large amounts of anhydrous ammonia are always present and under high pressure.
  • OSHA considers anhydrous ammonia to be “immediately dangerous to life and health” at a concentration of 300 parts per million (ppm), or 0.03%.
  • Any ammonia-based refrigeration system presents the risk of accidental exposure to high concentrations, which could cause serious harm to human health and property.
  • Ammonia is explosive, but only in high concentrations (16-25%) and temperatures above 1200 degrees F. However, ammonia is stored at high pressure and tanks can explode during a fire.

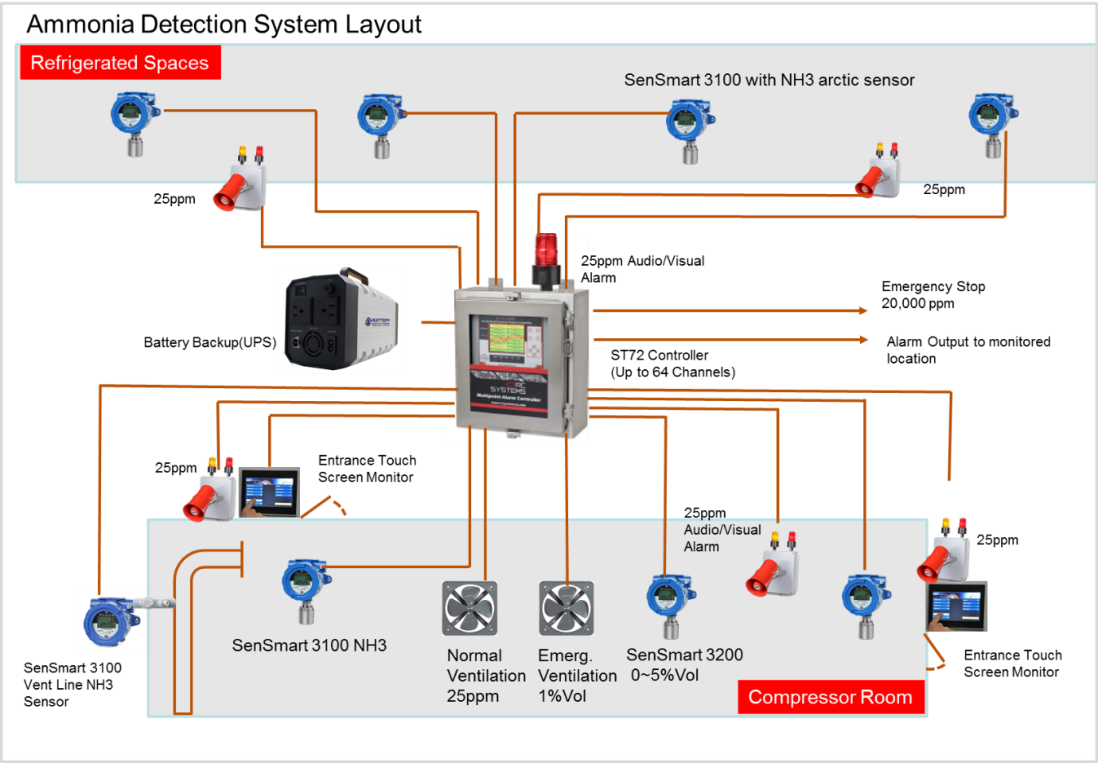

How are ammonia leaks detected early to prevent accidents?Diagram of an ammonia gas detection system layout

  • Electrochemical sensor technology is used for
    0-250PPM levels for early detection. Catalytic sensors are recommended for concentrations above 5000 PPM (.5%) to detect very large leaks or spills.
  • Compressor Rooms are the most likely areas to leak ammonia and require at least two 0-250 PPM and one 0-5% fixed ammonia gas detectors connected to an alarm controller.  One 0-250 PPM detector should be located under the normal ventilation fan. Others should be spaced in the breathing zone every 2000 square feet, about 5 feet above the floor. The 0-5% detector should be located 5 feet above the floor and below the emergency ventilation fan. It should activate the EV fan (1% alarm trip) and also shut down compressors, pumps, and disconnect power sources (2% alarm trip).
  • Refrigerated Rooms should have 0-100PPM detectors and 25PPM alarm trips to ensure personnel protection and early leak detection. The alarm controller should trigger audio-visual indicators at monitored locations. Locate sensors in the breathing zone about 5 feet above the floor.  Install enough detectors to be within 30 feet of potential leak sources.

Gas Detection in Refrigeration Systems using Ammonia (PDF version)


Wired Gas Detection System

Gases Detectors Controllers
Ammonia (NH3) 0-5% SenSmart 5200 Catalytic ViewSmart 400 (Up to 4 points)
Ammonia (NH3) PPM SenSmart 5100 EC ViewSmart 1600 (Up to 16 Points)
Carbon Dioxide (CO2) SenSmart 5400 IR ViewSmart 6400 (Up to 64 Points)


Wireless Gas Detection System

Gases Detectors Controllers
NH3, O2 SenSmart 7100 EC WNR WaveNet Receiver
CO2 SenSmart 7400 IR  (Up to 32 Points)
