SenSmart 7900 DUAL
[7900AL-24-4-1015/50P/L1-1015/100]

  • SenSmart 7900 DUAL
    SenSmart 7900 DUAL

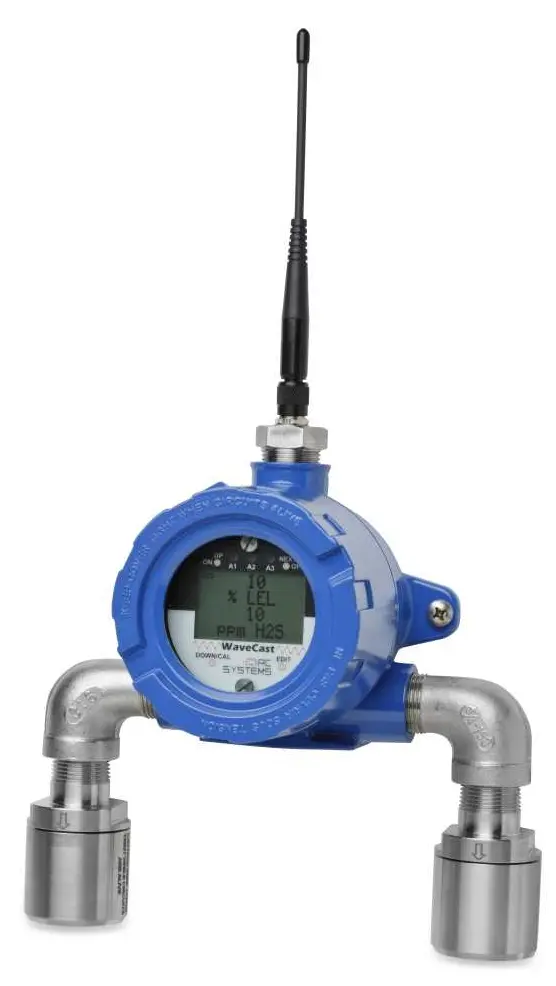

The battery powered wireless WaveCast Monitor (WCM) descends from our popular ST-48 wireless transmitter and is compatible with existing ST-48 systems.  WCM enhancements include power On/Off via the magnetic wand, dual gas sensors, easier battery replacement, plus the ability to separate the sensor up to 15 feet using a 4-wire sensor separation kit.

The new WaveNet Wireless Monitoring System is designed for easy deployment of both permanent and temporary monitoring sites


Specifications
  • Area Classification: Division 2 Non-Incendive
  • External/Battery Powered Model: Battery Powered WaveCast Monitor
  • Enclosure Type: Aluminum
  • 2.4GHz or 900MHz Radio Frequency: 2.4GHz Radio (International Applications)
  • Antenna: 1000-2300 Rubber 7dBi Collinear (Standard)
  • Sensor 1 Gas Type: Ammonia
  • Sensor 1 Sensor Type: 10-1015 Smart Sensor, EC Ammonia
  • Sensor 1 Range: 0-50ppm
  • Sensor 1 Location: Local Mount with Splash Guard
  • Sensor 2 Gas Type: Ammonia
  • Sensor 2 Sensor Type: 10-1015 Smart Sensor, EC Ammonia
  • Sensor 2 Range: 0-100ppm
  • Sensor 2 Location: Local Mount no Splash Guard
