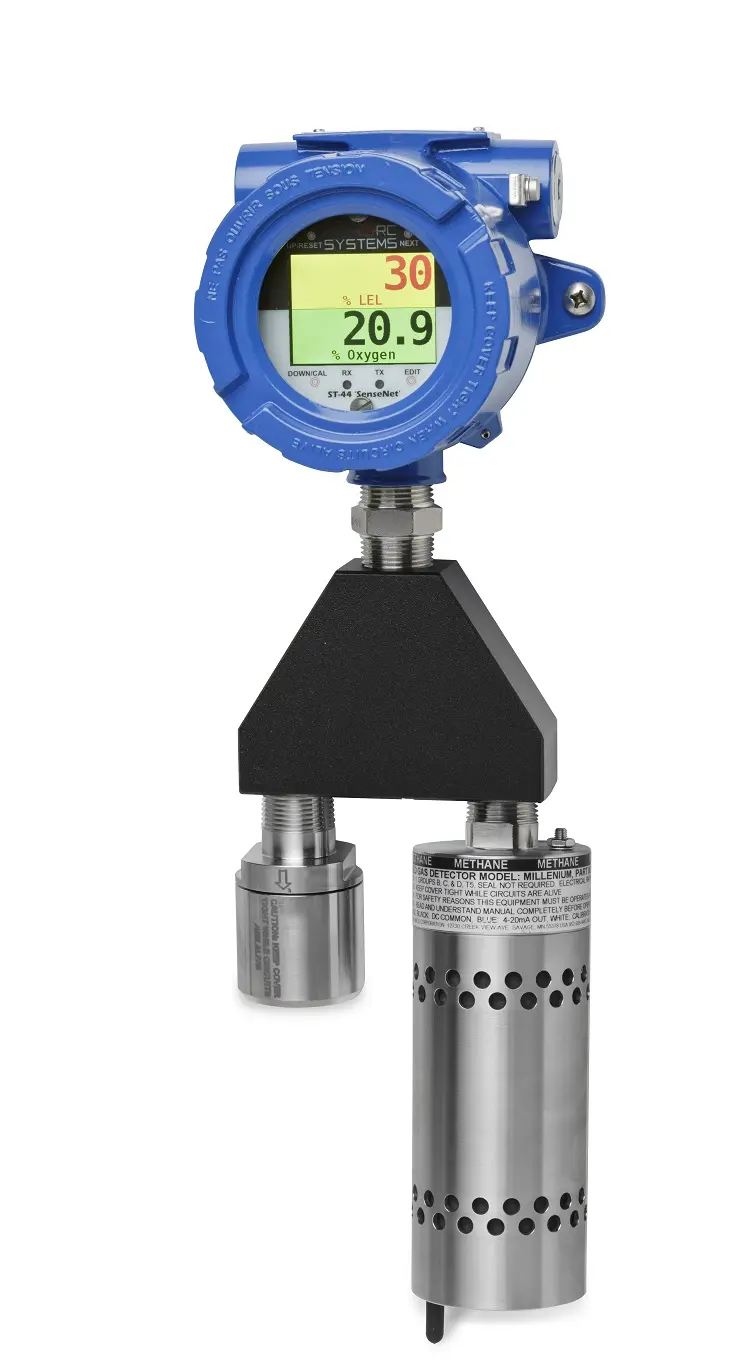

SenSmart 6900 DUAL

6900AL-0-1010/25V/L0-0520/100L/-30
The State-of-the-art SenSmart 6000 gas detector is built with our proven ‘ST-44’ transmitter. This versatile unit has a bright, vivid color display and embedded Ethernet with Webserver and Modbus TCP. The high performance, universal gas detector supports dual smart sensors with different type like Electrochemical, Catalytic Bead, Infrared and Photoionization sensors.

FEATURES HIGHLIGHT:
  • CSA Certified for Class 1, Div 1 locations
  • Vivid QVGA Backlit Color TFT Display
  • Display Color Changes with Alarm Status
  • Standard Ethernet Port with Web Server  and Modbus TCP
  • Dual Smart Sensor Capable
  • Sensor Life Indication
  • Remote Sensor Mount up to 4000’
  • Non-intrusive One-Man Calibration
  • Temperature Compensation
  • Two RS-485 Ports for Modbus
  • 3 Programmable Relays and Fault Relay Available
  • Heated elements available for low temperature
Total Price: $0.00 (0/ea)
Quantity:
Specifications
  • Area Classification: Division 1 Explosion Proof
  • Enclosure Type: Aluminum
  • Output Option: With Modbus TCP over Ethernet and Standard 4-20mA Output
  • Sensor 1 Gas Type: Oxygen
  • Sensor 1 Sensor Type: 10-1010 Smart Sensor, EC with Arctic Heater, Oxygen
  • Sensor 1 Range: 0-25% VOL
  • Sensor 1 Location: Local Mount no Splash Guard
  • Sensor 2 Gas Type: Acetylene
  • Sensor 2 Sensor Type: 10-0520 Millenium IR, Acetylene
  • Sensor 2 Range: 0-100% LEL
