SenSmart 6200 CAT
[6200PY-1-9071-2/100L/L2]

SenSmart 6200 CAT
SenSmart 6200 CAT

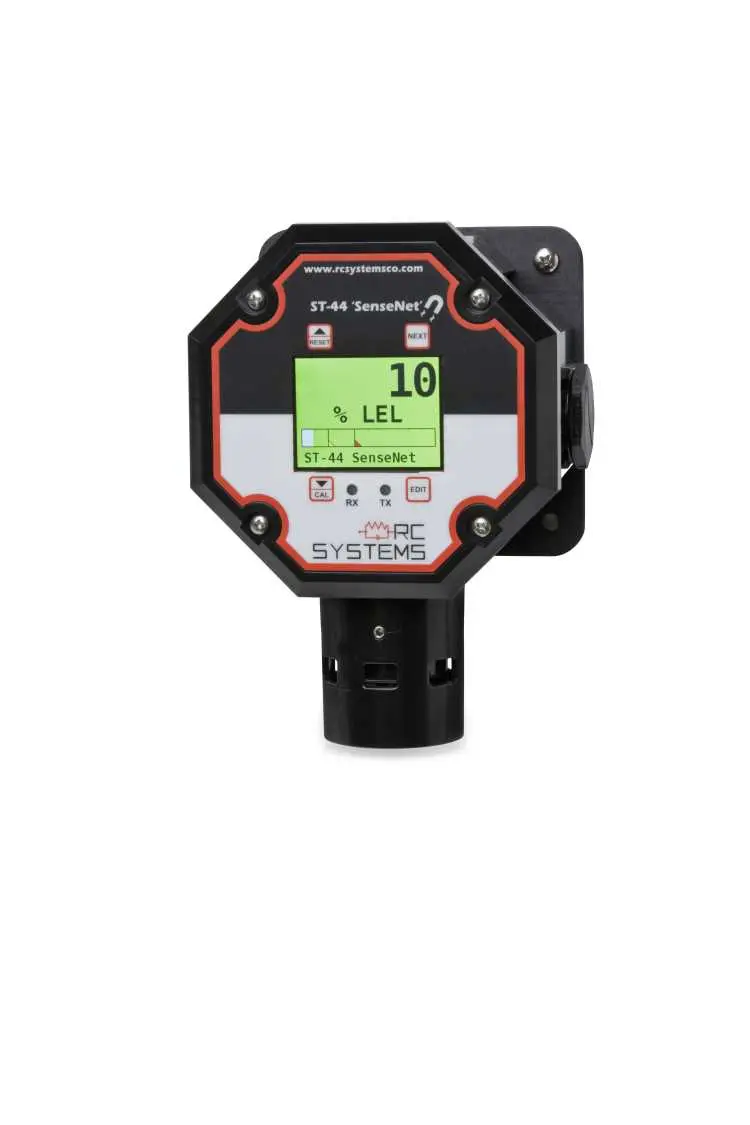

The State-of-the-art SenSmart 6000 gas detector is built with our proven ‘ST-44’ transmitter. This versatile unit has a bright, vivid color display and embedded Ethernet with Webserver and Modbus TCP. This high performance, universal gas detector supports Catalytic Bead sensors.
FEATURES HIGHLIGHT:
  • CSA Certified for Class 1, Div 1 locations
  • Vivid QVGA Backlit Color TFT Display
  • Display Color Changes with Alarm Status
  • Standard Ethernet Port with Web Server  and Modbus TCP
  • Sensor Life Indication
  • Remote Sensor Mount up to 4000’
  • Non-intrusive One-Man Calibration
  • Temperature Compensation
  • Two RS-485 Ports for Modbus
  • 3 Programmable Relays and Fault Relay Available
  • Heated elements available for low temperature
Specifications
  • Sensor Location: Local Mount with Built in Splash Guard for Poly Enclosure
  • Sensor Range: 0-100% LEL
  • Sensor Type: 10-9071-2 Smart Sensor, Ethane Catalytic Bead
  • Gas Type: Ethane
  • Output Option: 10-0388 Dual Modbus RTU with 4 Relays
  • Enclosure Type: Poly
  • Area Classification: Division 2 Non-Incendive
