SenSmart 6100 EC
[6100AL-1-1011/200P/R0]

  • SenSmart 6100 EC
    SenSmart 6100 EC
  • SenSmart 6100 EC in Aluminum Enclosure
    SenSmart 6100 EC in Aluminum Enclosure

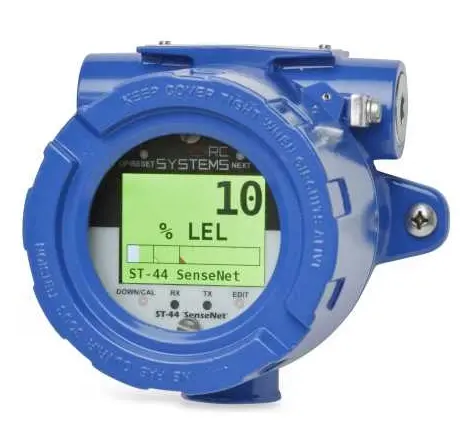

The State-of-the-art SenSmart 6100 gas detector is built with our proven ‘ST-44’ transmitter. This versatile unit has a bright, vivid color display and embedded Ethernet with Webserver and Modbus TCP. This high performance, universal gas detector supports the Electrochemical sensor.
FEATURES HIGHLIGHT:
  • CSA Certified for Class 1, Div 1 locations
  • Vivid QVGA Backlit Color TFT Display
  • Display Color Changes with Alarm Status
  • Standard Ethernet Port with Web Server  and Modbus TCP
  • Dual Smart Sensor Capable
  • Sensor Life Indication
  • Remote Sensor Mount up to 4000’
  • Non-intrusive One-Man Calibration
  • Temperature Compensation
  • Two RS-485 Ports for Modbus
  • 3 Programmable Relays and Fault Relay Available
  • Heated elements available for low temperature
Specifications
  • Area Classification: Division 2 Non-Incendive
  • Enclosure Type: Aluminum
  • Output Option: 10-0388 Dual Modbus RTU with 4 Relays
  • Gas Type: Carbon Monoxide
  • Sensor Type: 10-1011 Smart Sensor, EC with Arctic Heater, Carbon Monoxide
  • Sensor Range: 0-200ppm
  • Sensor Location: Remote Mount no Splash Guard, Aluminum
