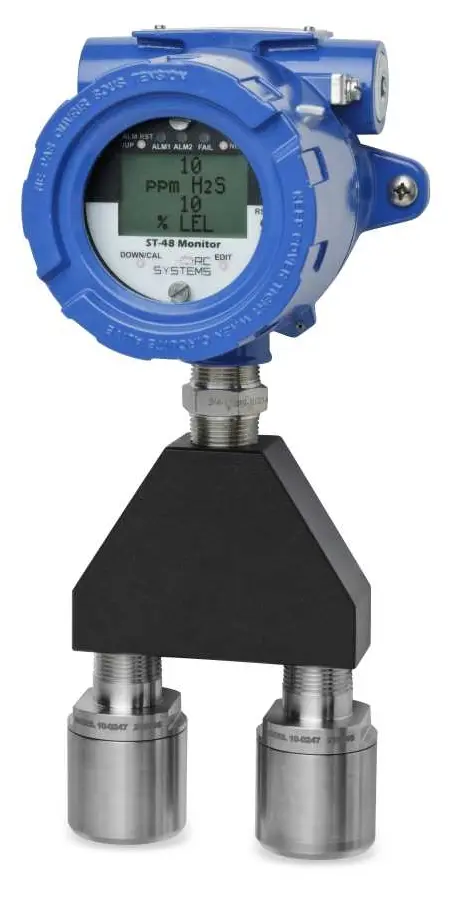

SenSmart 3900 DUAL

  • SenSmart 3900 DUAL

    SenSmart 3900 DUAL

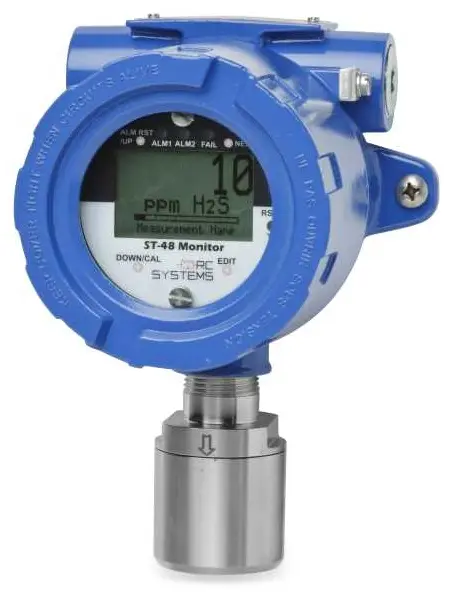

  • SenSmart 3900 in Aluminum Enclosure
    SenSmart 3900 in Aluminum Enclosure

The SenSmart 3900 3-wire gas detector is built with our reliable ‘ST-48’ smart transmitter, which provides the cutting-edge technology in toxic and combustible gas detection. It’s a universal, easy to use detector that supports dual smart sensor with different types, including electrochemical, Catalytic Bead, Infrared and Photoionization sensors.

  • CSA Certified for Class I, Div 1 Locations
  • Graphic LCD display shows values, units, trend graph, alarm levels
  • Backlit display for better visibility in low light conditions
  • LED indication of alarm status
  • Dual smart sensor capable
  • Supports both local and remote sensors for easy installation
  • Non-intrusive, prompted calibration with programmable cal-gas
  • Power-up and post-calibration delays eliminate false alarms
  • Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS®
  •  Auto-recognition of Smart Sensors uploads calibration data and more
  • Real-time clock and calendar logs alarms, calibration and power-up events
  • Security mode allows locking of critical parameters
  • Fault supervision circuitry detects failed sensor and transmits warning
  • Setup in hazardous area requires only simple magnetic wand



3900ARCAL-1-9017-ARC/1P/L1-9053- Specifications

  • Area Classification: Division 2 Non-Incendive
  • 3-Wire/Heated Models: ST-48 3-Wire with 4W Internal Heater
  • Enclosure Type: Aluminum
  • Output Option: 10-0234 Modbus RTU + 3 Relays
  • Sensor 1 Gas Type: Flourine
  • Sensor 1 Sensor Type: 10-9017-ARC Smart Sensor, EC with Arctic Heater, Fluorine
  • Sensor 1 Range: 0-1ppm
  • Sensor 1 Location: Local Mount with Splash Guard
  • Sensor 2 Gas Type: Carbon Dioxide
  • Sensor 2 Sensor Type: 10-9053-ARC Smart Sensor, IR, Carbon Dioxide
  • Sensor 2 Range: 0-5% VOL
  • Sensor 2 Location: Second Local Mount Sensor with Y-fitting and no Splash Guard
