SenSmart 3300M Millenium IR Combustible Gas Detector
»
SenSmart 3300M Millennium IR
SenSmart 3300M Millennium IR
3300AL-0-0498/100L/L3-0

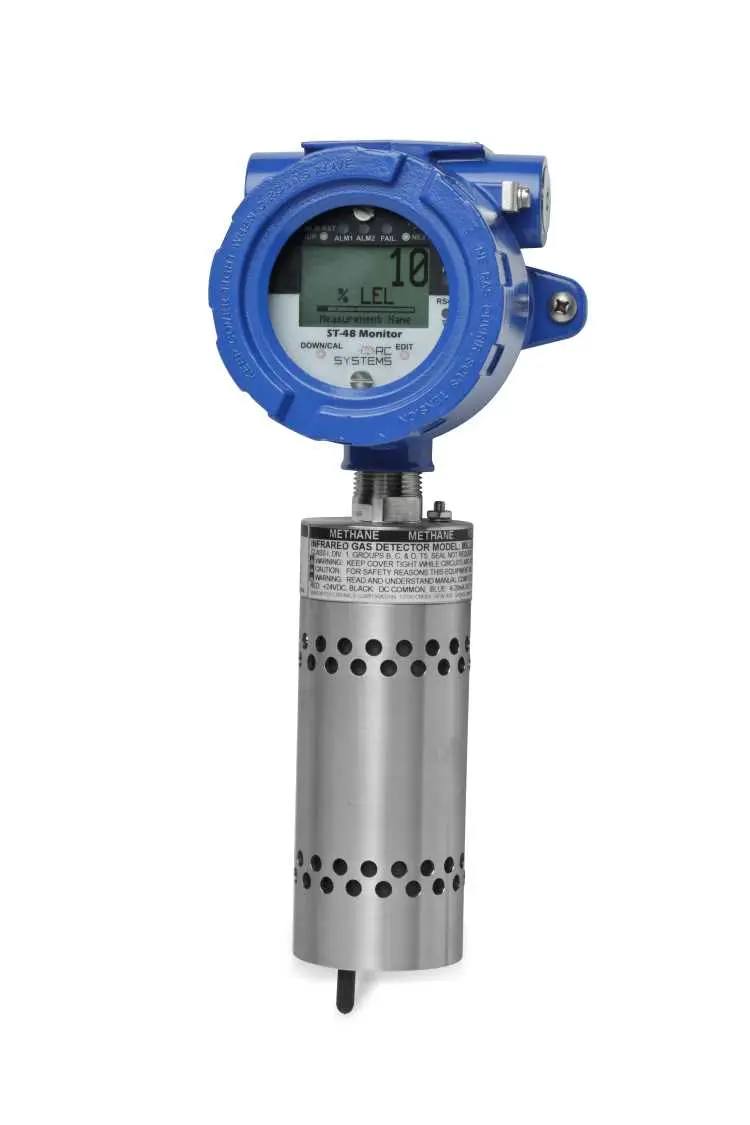

SenSmart 3300M Millennium IR
The SenSmart 3000 3-wire gas detector is built with our reliable ‘ST-48’ smart transmitter, which provides the cutting-edge technology in toxic and combustible gas detection. It’s a universal, easy to use detector that supports Infrared sensors.
The microprocessor based intelligent SenSmart infrared gas detector is ideally suited for use in harsh environments and where conventional catalytic detectors is prohibitive. These infrared gas detectors perform reliably in the presence of silicone and other catalyst poisoning agents and operate in oxygen free environments or where high background gas levels are present.
FEATURES HIGHLIGHT
CSA Certified for Class I, Div 1 Locations
Graphic LCD display shows values, units, trend graph, alarm levels
Backlit display for better visibility in low light conditions
LED indication of alarm status
Supports both local and remote sensors for easy installation
Non-intrusive, prompted calibration with programmable cal-gas
Power-up and post-calibration delays eliminate false alarms
Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS®
Auto-recognition of Smart Sensors uploads calibration data and more
Real-time clock and calendar logs alarms, calibration and power-up events
Security mode allows locking of critical parameters
Fault supervision circuitry detects failed sensor and transmits warning
Setup in hazardous area requires only simple magnetic wand
MILLENIUM SENSOR FEATURE HIGHLIGHT
Virtually maintenance free infrared sensing technology
Low cost of ownership with over five years operating life
Rugged stainless steel construction with fast response time
Requires no routine calibration to ensure proper operation
Fault indications for all failure states
Patented self-compensating optics with no moving parts
Heated optical chamber prevents condensation
A multi-layered filtering system protects optics from dirt and water ingress
Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
Performs well in the presence of high concentrations or constant background levels of hydrocarbons and in oxygen depleted atmospheres
Highly resistant to poisoning and etching
Standard 4-20 mA output (source)
Quantity:
Add to Quote
3300AL-0-0498/100L/L3-0 Specifications
Area Classification:
Division 1 Explosion Proof
Enclosure Type:
Aluminum
3-Wire/Heated Models:
Standard 3-wire Model
Output Option:
Standard 4-20mA Output
Gas Type:
Methane
Sensor Type:
10-0498 Millenium IR, Methane
Sensor Range:
0-100% LEL
Sample Draw Barrel Option:
No Sample Draw Barrel Option
