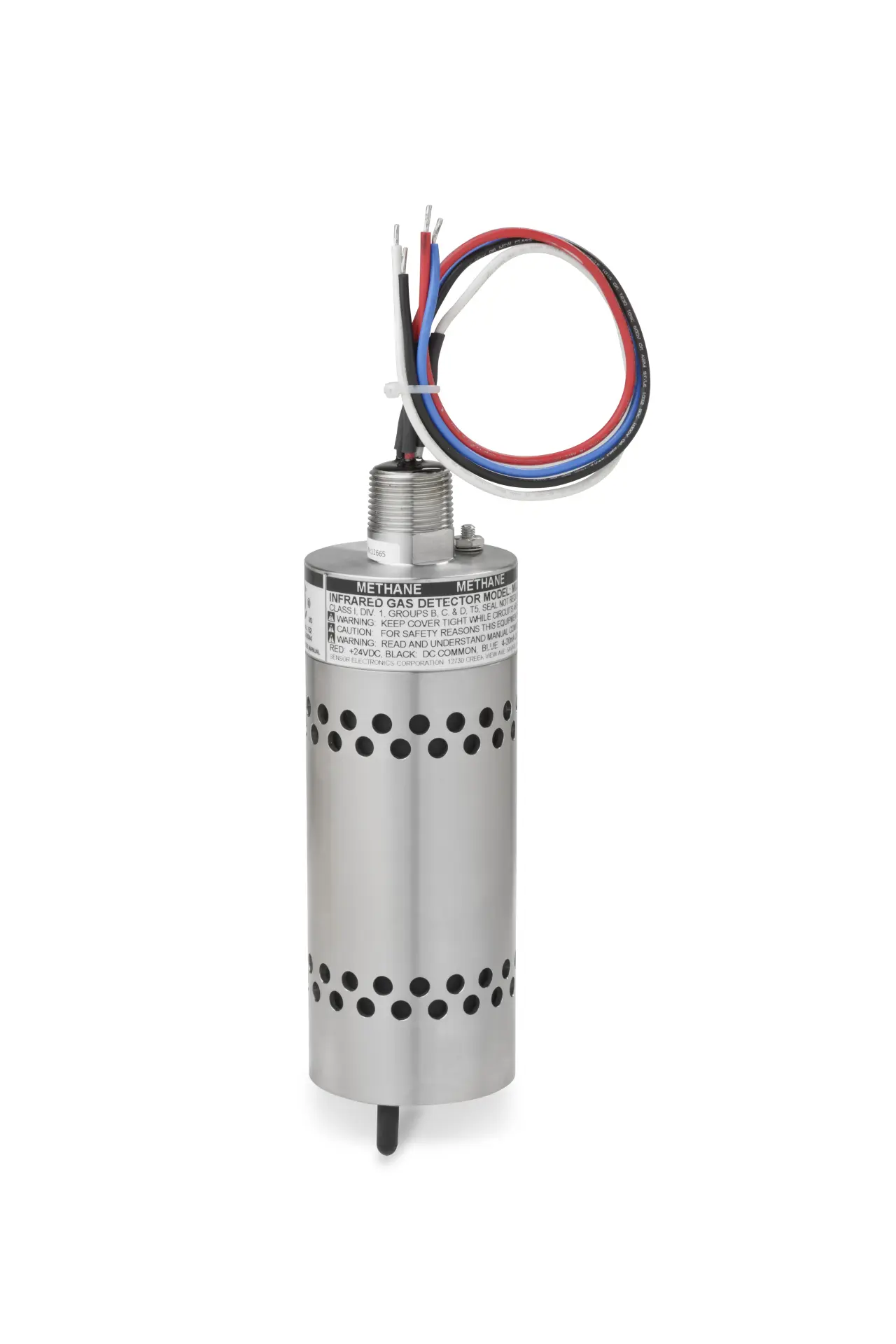

SenSmart 1300M Millenium IR Combustible Gas Detector
»
SenSmart 1300M Millennium IR
SenSmart 1300M Millennium IR
0498/100L/0-0
SenSmart 1300M Millennium IR
The microprocessor based intelligent SenSmart 1300M infrared gas detector is ideally suited for use in harsh environments and where conventional catalytic detectors are prohibitive. These infrared gas detectors perform reliably in the presence of silicone and other catalyst poisoning agents and operate in oxygen free environments or where high background gas levels are present.
The SenSmart 1300M can directly connect to SenSmart 3000 , SenSmart 6000 and SenSmart 7000 transmitters to have local display and other advanced functions from those transmitters. Please refer to SenSmart Millennium Sensor Brochure for more details.
FEATURES HIGHLIGHT
Virtually maintenance free infrared sensing technology
Low cost of ownership with over five years operating life
Rugged stainless steel construction with fast response time
Requires no routine calibration to ensure proper operation
Fault indications for all failure states
Patented self-compensating optics with no moving parts
Heated optical chamber prevents condensation
A multi-layered filtering system protects optics from dirt and water ingress
Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
Performs well in the presence of high concentrations or constant background levels of hydrocarbons and in oxygen depleted atmospheres
Highly resistant to poisoning and etching
Standard 4-20 mA output (source)
Quantity:
Add to Quote
0498/100L/0-0 Specifications
Gas Type:
Methane
Sensor Type:
10-0498 Millenium IR, Methane
Sensor Range:
0-100% LEL
Sample Draw Barrel Option:
No Sample Draw Barrel Option
