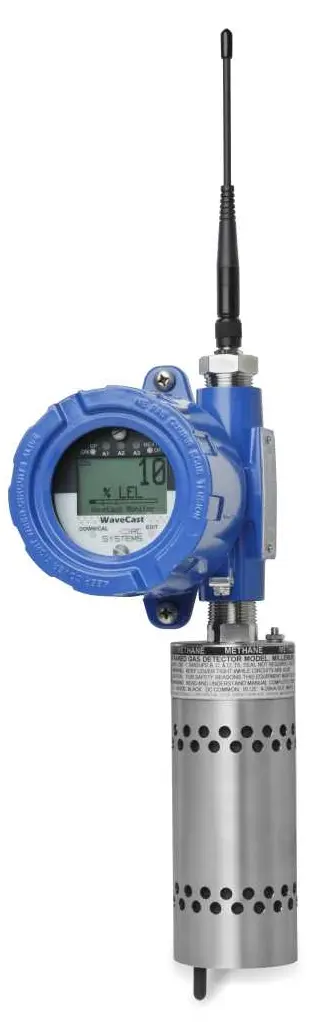

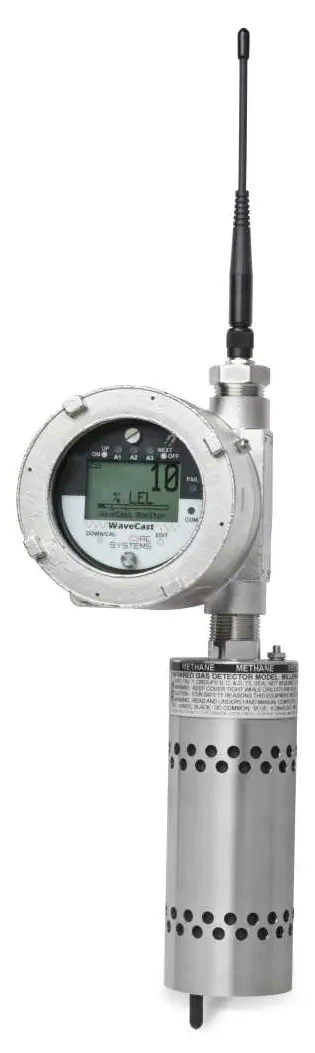

SenSmart 7300M Millenium IR Combustible Gas Detector

RC Systems’ SenSmart 7300M Millenium IR wireless gas detector provides the most advanced, economical, and reliable true-wireless gas detection. The SenSmart 7300M is easy to use and compatible with our new Millenium infrared sensors for hydrocarbon combustibles.

This microprocessor-based intelligent infrared gas detector is ideally suited for use in harsh environments and any application where conventional catalytic detection is prohibitive. SenSmart 7300M infrared gas detectors perform reliably in the presence of silicone and other catalyst-poisoning agents. They are engineered to operate in oxygen-free environments and locations where high background gas levels are present.

These SenSmart gas detectors are CSA certified for Class 1, Division 2 hazardous locations. Setup in hazardous areas requires only a simple magnetic wand.

Use the configurator below to request a quote on the SenSmart 7300M IR gas detector you need. Contact RC Systems to order or to learn more.


Features of SenSmart 7300M IR Gas Detectors

  • CSA certified for Class 1, Division 2 hazardous locations
  • Setup in hazardous area requires only simple magnetic wand
  • Available for both 900Mhz and 2.4Ghz
  • Frequency-Hopping Spread Spectrum (FHSS) technology
  • Typical > 1 mile range with local dipole antenna (900Mhz)
  • Detected gas data transmits on six second intervals
  • Transmits all setup information to wireless receiver
  • Graphic display shows values, units, trend graph, alarm levels
  • Power ON/OFF using magnetic wand only
  • Three adjustable independent alarm levels per sensor
  • ​5 LEDs indicate alarms and communication status
  • Non-intrusive, user-prompted calibration procedure
  • Security settings to lock critical parameters
  • Fault supervision circuitry detects failed sensor and transmits warning
  • Magnetic mount option available

Highlights of Millenium Series Gas Sensors

  • Virtually maintenance-free infrared sensing technology
  • Low cost of ownership with over five years’ operating life
  • Rugged stainless steel construction
  • Fast response time
  • Requires no routine calibration to ensure proper operation
  • Fault indications for all failure states
  • Patented self-compensating optics with no moving parts
  • Heated optical chamber prevents condensation
  • A multi-layered filtering system protects optics from dirt and water ingress
  • Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
  • Performs well in the presence of high concentrations or constant background levels of hydrocarbons and in oxygen depleted atmospheres
  • Highly resistant to poisoning and etching
  • Standard 4-20 mA output (source)
