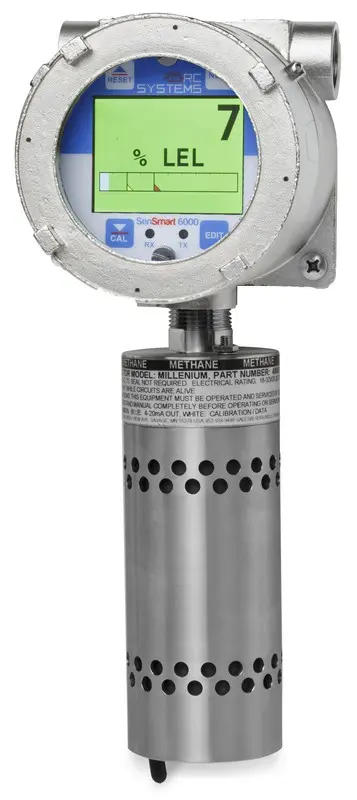

SenSmart 6300M Millenium IR Combustible Gas Detector

RC Systems’ state-of-the-art SenSmart 6300M Millenium IR gas sensor utilizes our innovative ST-44 transmitter, featuring a vivid, full-color display and embedded Ethernet with Webserver and Modbus TCP. This high performance universal gas detector supports infrared sensors.

Microprocessor-based SenSmart gas detectors are ideal for harsh environments where conventional catalytic detectors are prohibited. These intelligent, infrared gas detectors perform reliably in the presence of silicone and other catalyst-poisoning agents. They can operate at full capacity in oxygen-free environments or those where high background gas levels are present.

These SenSmart 6300M IR gas detectors are CSA certified for Class 1, Division 1 locations.

Use the configurator below to request a quote on SenSmart 6300M IR gas detectors for your application. Contact RC Systems to place an order or to learn more.

Features of SenSmart 6300M IR Gas Detectors

  • CSA certified for Class 1, Div 1 locations
  • Vivid QVGA backlit color TFT display
  • Display color changes with alarm status
  • Standard Ethernet port with Webserver and Modbus TCP
  • Sensor life indicator
  • Remote sensor mount up to 4000’
  • Non-intrusive single-user calibration
  • Temperature compensation
  • Two RS-485 ports for Modbus
  • 3 programmable relays and fault relay available
  • Heated elements available for low temperature operation

Highlights of Millenium Series Gas Sensors

  • Virtually maintenance-free infrared sensing technology
  • Low cost of ownership with over five years’ operating life
  • Requires no routine calibration to ensure proper operation
  • Fault indications for all failure states
  • Rugged stainless steel construction
  • Fast response time
  • Patented self-compensating optics with no moving parts
  • Heated optical chamber prevents condensation
  • A multi-layered filtering system protects optics from dirt and water ingress
  • Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
  • Performs well in the presence of high concentrations or constant background levels of hydrocarbons and in oxygen depleted atmospheres
  • Highly resistant to poisoning and etching
  • Standard 4-20 mA output (source)
