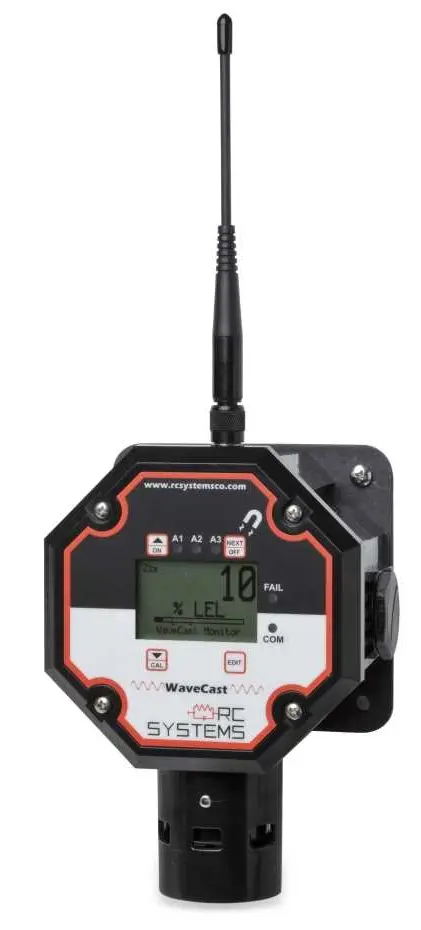

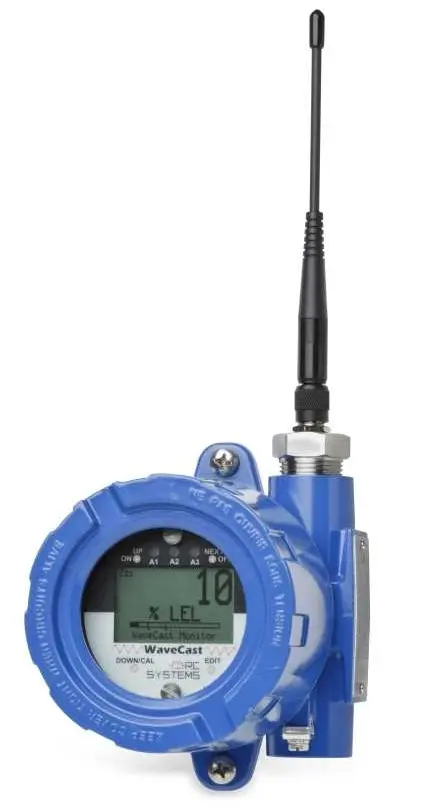

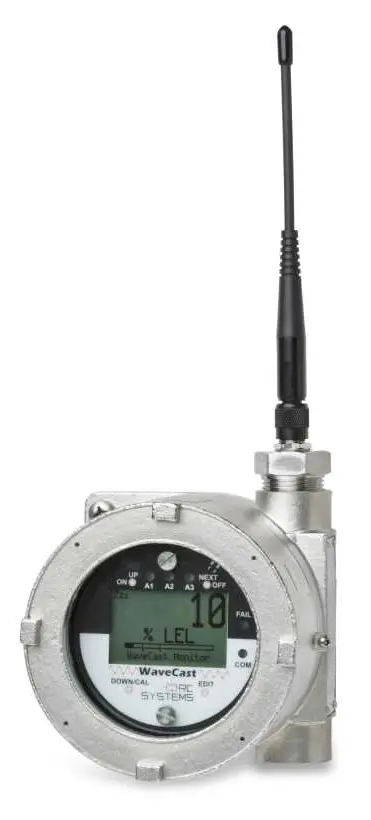

SenSmart 7600 4-20mA Sensor Transmitter

The battery -powered SenSmart 7600 wireless 4-20mA transmitter, with ultra-low power design and easy to use features, provides the most advanced, economical and reliable true wireless transmitter solution.

Features

• CSA Certified for Class 1, Division 2 hazardous locations
• D-cell lithium battery powered for up to 9 months
• Available for both 900Mhz and 2.4Ghz
• Frequency-Hopping Spread Spectrum (FHSS) technology
• Typical > 1 mile range with local dipole antenna (900Mhz)
• Detected input transmits on six second intervals
• Graphic display shows values, units, trend graph, alarm levels
• Power ON / Power OFF using magnetic wand only
• Transmits all setup information to Wireless Receiver
• Security settings to lock critical parameters
• Auto-recognition of Smart Sensors uploads calibration data and more
• Fault supervision circuitry detects failed sensor and transmits warning
• Setup in hazardous area requires only simple magnetic wand
• Magnetic mount option available
• Three adjustable independent alarm levels per sensor
• ​5 LEDs indicate alarms and communication status
