ST-90 4-Channel Alarm Controller
[ST90-1-00-1-110-2-67-1]

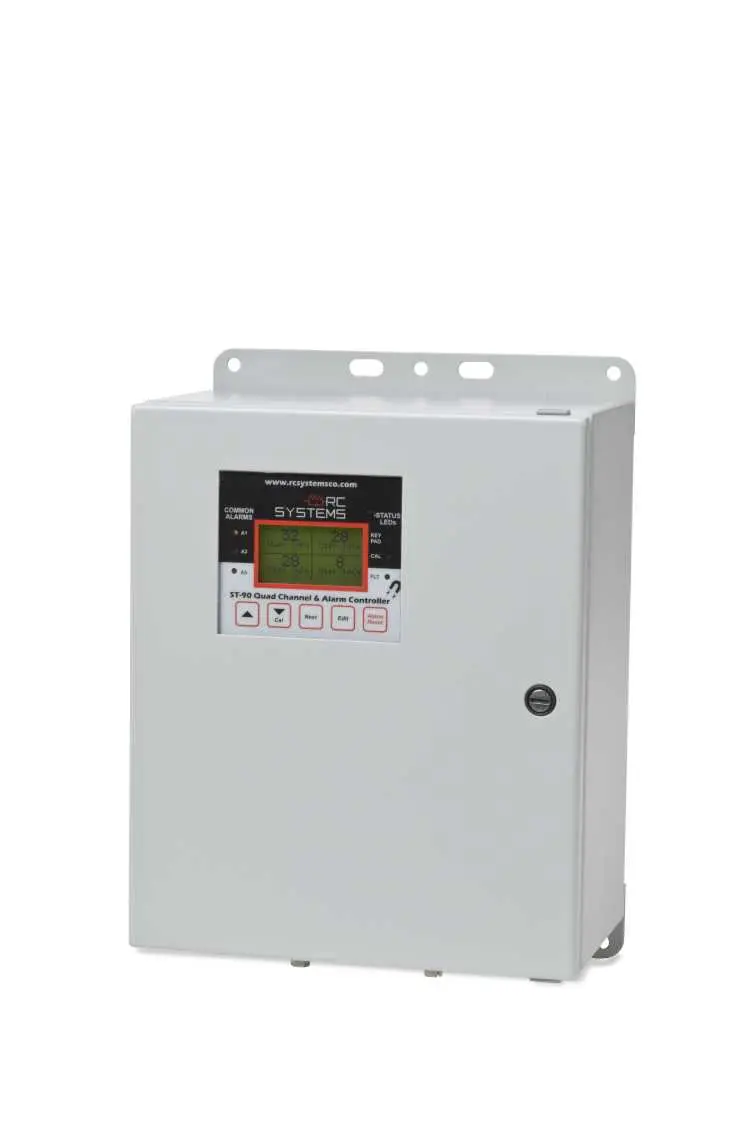

ST-90 4-Channel Alarm Controller

The ST-90 Quad Channel Controller provides simultaneous display and alarm functions for four monitored variables. Easy to configure and user friendly, the ST-90 Quad can function as a critical Alarm Controller for toxic and combustible gases, vibration, tank levels and other process values.  Up to 8 configurable relays allow zoning and voting.

The ST-90 Quad Controller, with its wireless option, often functions as the "Site Controller" for the Rig Protector and other area monitoring applications when it is desirable to interface wirelessly with other controllers and alarm instrumentation.  For example, rig perimeter monitoring projects often require several Site Controllers to receive 4-20mA signals from sensors and annunciate strobes and horns for a local area. The ST-90 Quad's wireless interface makes it very easy to funnel its monitored data on to a larger controller for the entire rig. The ST-90 Quad four channel controller provides simultaneous display and alarm functions for four monitored variables. Easy to configure and user friendly, the ST-90 Quad functions as a critical alarm controller for toxic and combustible gases, vibration, tank levels and many other process values.

Specifications
  • Enclosure: 90-51 Painted Steel (NEMA 4)
  • Serial Interface: None
  • Antenna: No Antenna
  • Power Supply: 1000-2259 AC with 50W 24VDC
  • Input: 10-0221/4 - 4-20mA Input
  • Output: 10-0308 4-20mA Output
  • Discrete Relay: 2 Standard Alarm Relays
  • Audible Alarms: 10-0281 Division 2 Horn (mounted seperately)
  • Visual Alarm 1: 10-0284 Division 2 Red Strobe Locally Mounted
  • Visual Alarm 2: 10-0285 Division 2 Amber Strobe Locally Mounted
  • Alarm Bar Option: Quick Connect for Two or Four Light Alarm Bar (sold seperately)
