ST-72 64-Channel Alarm Controller
[ST72-7-12AA-20-111000-20-0]

  • ST-72 64-Channel Alarm Controller
    ST-72 64-Channel Alarm Controller

The ST-72 controller provides simultaneous display and alarm functions for up to 64 input variables. 16-32-48-64 channel display modes, and I/O modules arranged in groups of 16 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications.

Specifications

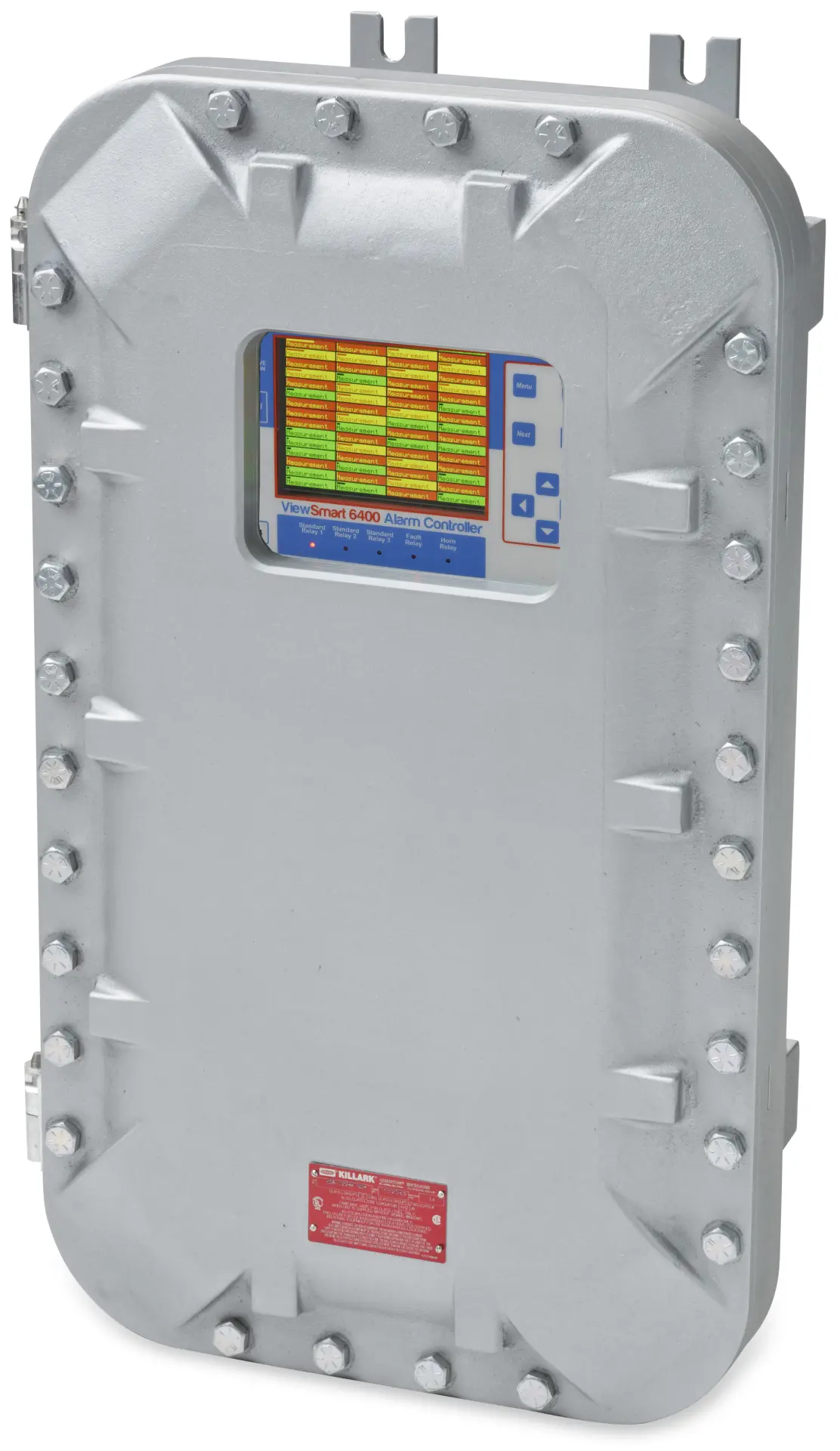

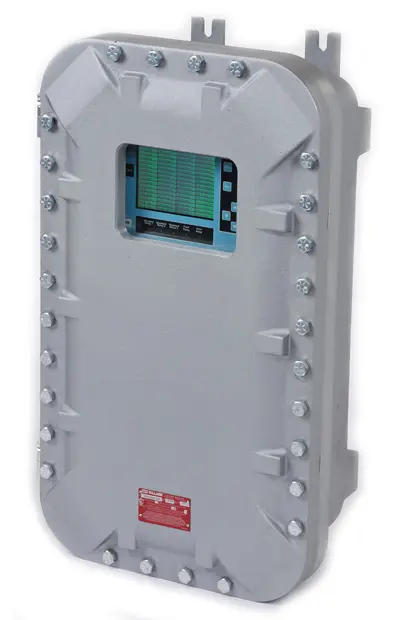

  • Enclosure: Cast Aluminum (NEMA 4 & 7)
  • Modbus Option: Dual Isolated RS-485 plus 900MHZ Dual
  • Wireless Modbus Comm Port 1 Antenna: 1000-2193 Division 1 2dBi Dipole
  • Wireless Modbus Comm Port 2 Antenna: 1000-2193 Division 1 2dBi Dipole
  • Power Supply: Add 10-0367 115 / 220 VAC 24VDC @ 600 Watts
  • Auxillary Relay Option: No (Standard)
  • Option 1: 10-0344 AI for 16 4-20mA Inputs
  • Option 2: 10-0344 AI for 16 4-20mA Inputs
  • Option 3: 10-0344 AI for 16 4-20mA Inputs
  • Option 4: None
  • Option 5: None
  • Option 6: None
  • Local Alarm 1: 10-0281 Division 2 Horn (mounted seperately)
  • Local Alarm 2: None
  • Expansion Plate: No Expansion Plate
