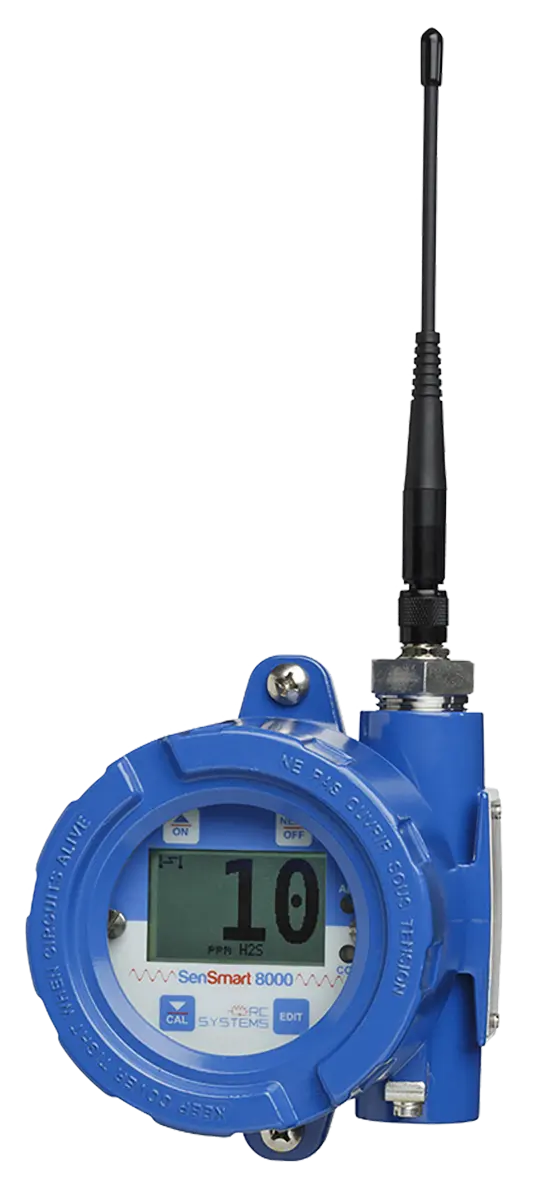

SenSmart 8100 EC

The battery-powered SenSmart 8000 wireless gas detector, with ultra-low power design and easy to use features, provides the most advanced, economical and reliable true wireless toxic and combustible gas detection solution. The SenSmart 8000 is compatible with all RC System’s toxic sensors, including hydrogen sulfide, carbon dioxide, oxygen, hydrogen cyanide and many others. In addition, the SenSmart 8000 also supports the new low-power infrared sensor for hydrocarbon combustibles or carbon dioxide.


Use the configurator below to request a quote on SenSmart gas detection systems for your facility. Contact RC Systems to place your order or to learn more.












Features & Highlights of the SenSmart 8100 EC

• CSA Certified for Class 1, Division 2 hazardous locations
• D-cell lithium battery powered for up to 9 months Toxic/Oxygen and 6 months LEL operation
• Available for both 900Mhz and 2.4Ghz
• Frequency-Hopping Spread Spectrum (FHSS) technology
• Typical > 1 mile range with local dipole antenna (900Mhz)
• Detected gas data transmits on six second intervals
• Graphic display shows values, units, trend graph, alarm levels
• Power ON / Power OFF using magnetic wand only
• Non-intrusive, user-prompted calibration procedure
• Transmits all setup information to Wireless Receiver
• Security settings to lock critical parameters
• Auto-recognition of Smart Sensors uploads calibration data and more
• Fault supervision circuitry detects failed sensor and transmits warning
• Setup in hazardous area requires only simple magnetic wand
• Magnetic mount option available
• Three adjustable independent alarm levels per sensor
• 2 LEDs indicate alarms and communication status
