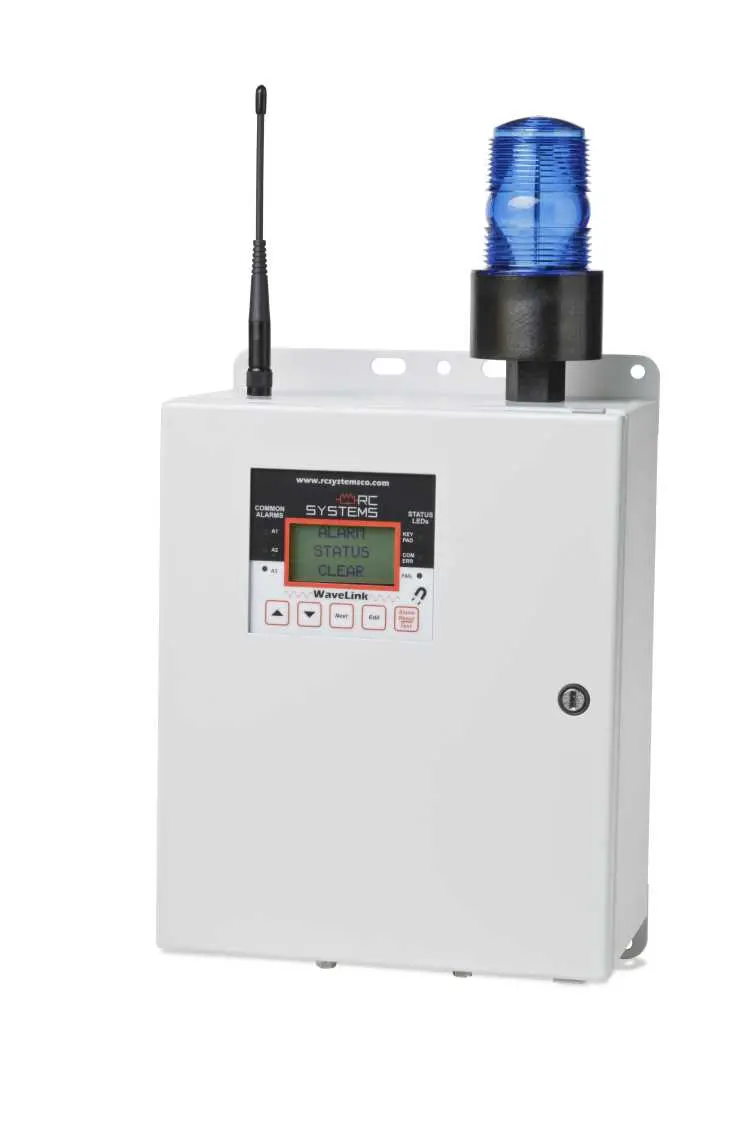

WaveLink Receiver 32-Channel Wireless Alarm Controller
[WLRPS90-1-8/1/0-1-D-1]


WaveLink Receiver 32-Channel Wireless Alarm Controller

The WaveLink Receiver (WLR) is the 32 Channel Receiver / Alarm Controller portion of the WaveNet wireless monitoring system. Systems may utilize numerous WaveLinks on the same wireless network when it is desirable to indicate readings and alarms at multiple locations. A Multifunction optional PCB is available to add data logging, RS-485 / Wireless Modbus slave ports and a Wi-Fi access point with web server.

Specifications
  • Enclosure: Painted Steel (NEMA 4)
  • Primary Radio Frequency (for WaveCast comms): 900MHz Radio (License Free in North America)
  • Primary Communications Antenna: 1000-2189 Rubber 2.5dBi Dipole (Standard)
  • Multifunction Option Board (USB Data Logging, Wired/Wireless Mod: 900MHz Wireless Modbus, Ethernet and USB Data Logger
  • Wireless Modbus Slave Port Antenna (Requires Multifunction Optio: 1000-2189 Rubber 2.5dBi Dipole (Standard)
  • WiFi Option Antenna (Requires Multifunction Option Board with Wi: WiFi Option Not Selected
  • Power Supply: 1000-2259 AC with 50W 24VDC
  • Local Alarm 1: 1000-2809 General Purpose Blue Strobe Locally Mounted
  • Local Alarm 2: 10-0337 Division 2 Locally Mounted Piezo
