ST-72 64-Channel Alarm Controller
[ST72-6-0000-21-115500-2-60-0-0]

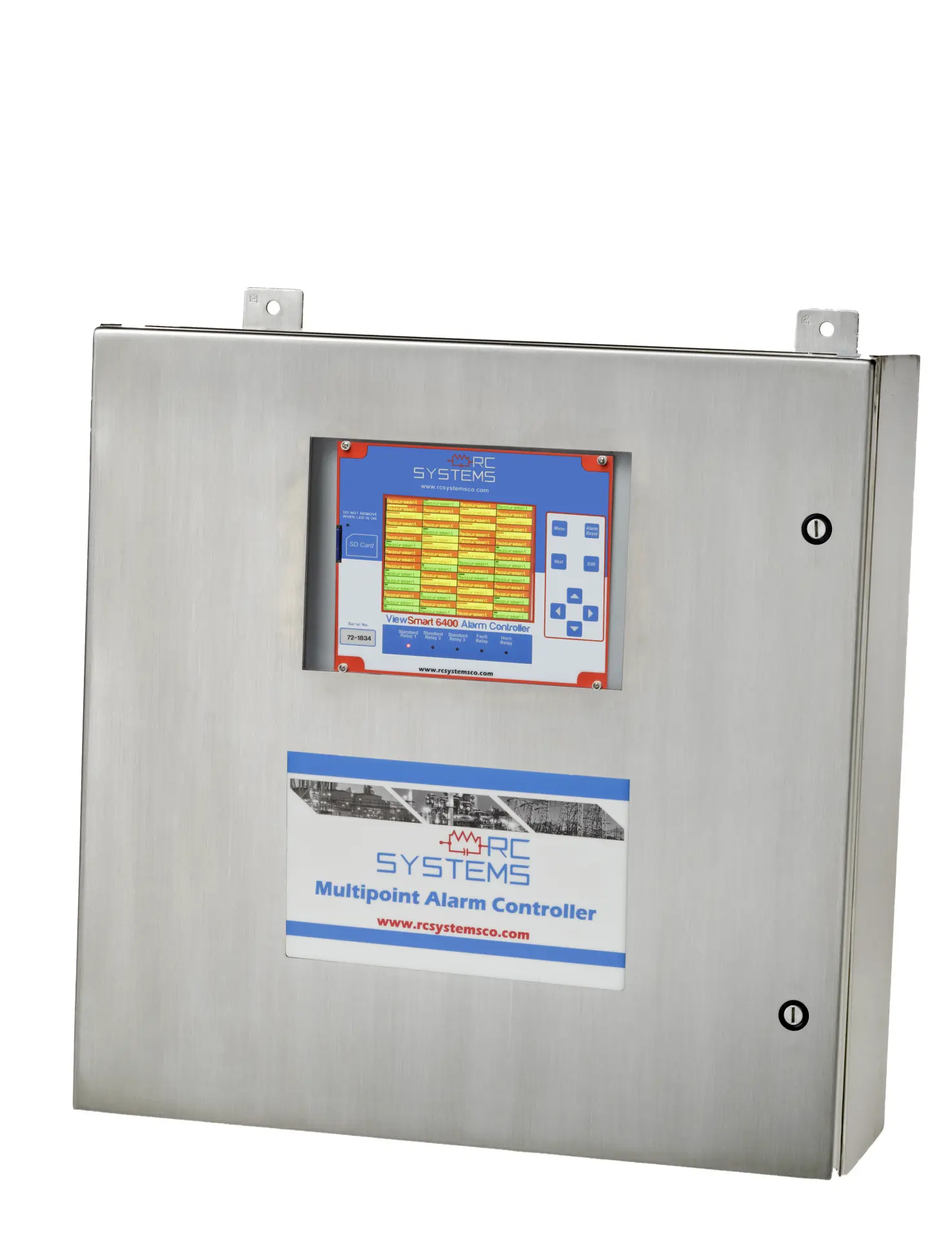

ST-72 64-Channel Alarm Controller

The ST-72 controller provides simultaneous display and alarm functions for up to 64 input variables. 16-32-48-64 channel display modes, and I/O modules arranged in groups of 16 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications.

Specifications
  • Enclosure: Standard 316 Stainless Steel (NEMA 4X)
  • Modbus Option: Dual RS-485 Master/Slave Ports (Standard)
  • Wireless Modbus Comm Port 1 Antenna: No Wireless Modbus Comm Port Option Selected
  • Wireless Modbus Comm Port 2 Antenna: No Wireless Modbus Comm Port Option Selected
  • Power Supply: Add 10-0367 115 / 220 VAC 24VDC @ 600 Watts
  • Auxillary Relay Option: Yes
  • Option 1: 10-0344 AI for 16 4-20mA Inputs
  • Option 2: 10-0344 AI for 16 4-20mA Inputs
  • Option 3: 10-0345 for 16 Discrete Relays
  • Option 4: 10-0345 for 16 Discrete Relays
  • Option 5: None
  • Option 6: None
  • Audible Alarms: 10-0281 Division 2 Horn (mounted seperately)
  • Visual Alarm 1: 10-0284 Division 2 Red Strobe Locally Mounted
  • Visual Alarm 2: None
  • Alarm Bar Option: None
  • Expansion Plate/Enclosure: None
