ST-72 64-Channel Alarm Controller
[ST72-5-0211-20-000000-B0-1-1000000000]

  • ST-72 64-Channel Alarm Controller

The ST-72 controller provides simultaneous display and alarm functions for up to 64 input variables. 16-32-48-64 channel display modes, and I/O modules arranged in groups of 16 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications.

Specifications
  • Enclosure: Compact 316 Stainless Steel (NEMA 4X)

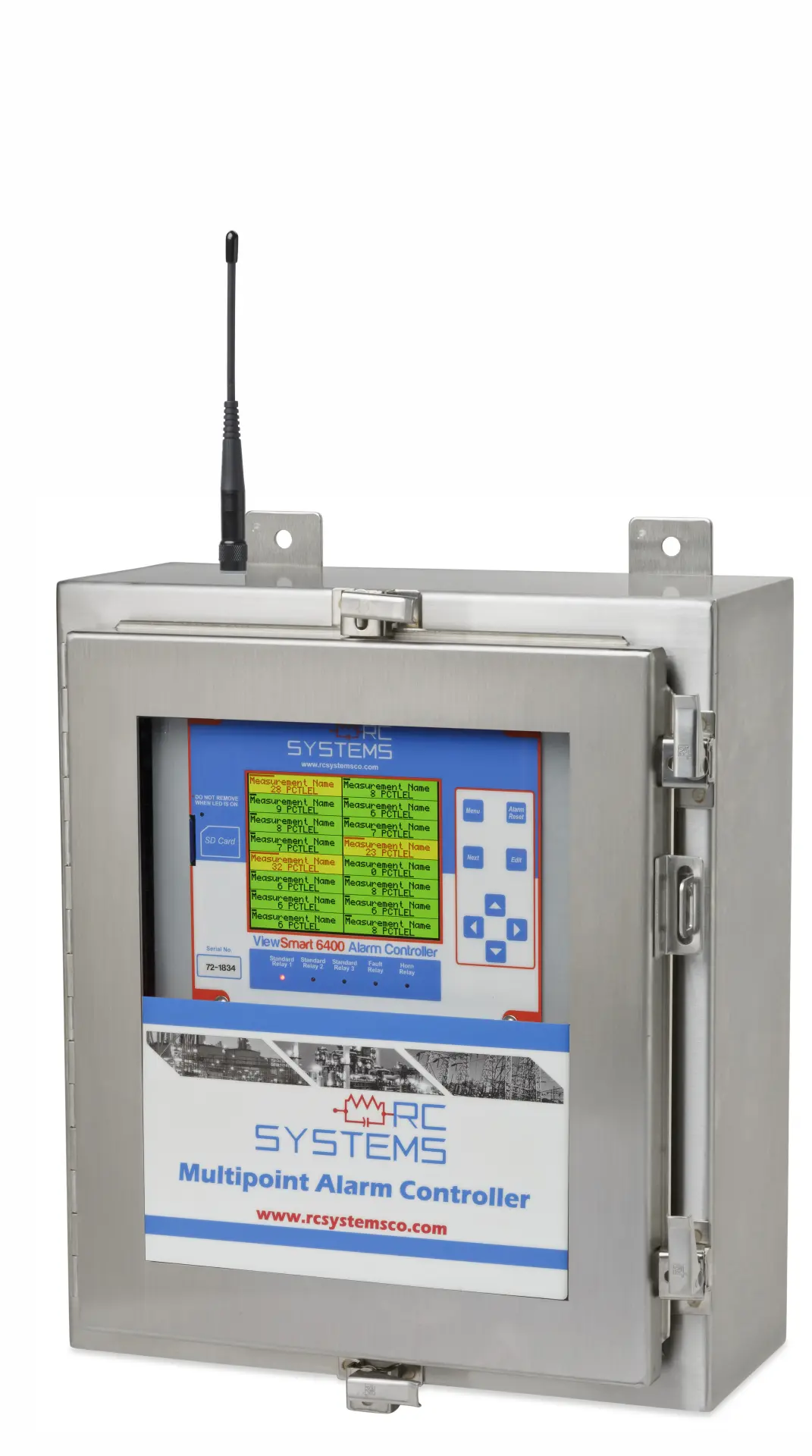

  • Modbus Option: 900MHZ Dual Port
  • Wireless Modbus Comm Port 1 Antenna: 1000-2189 Rubber 2.5dBi Dipole (Standard)
  • Wireless Modbus Comm Port 2 Antenna: 1000-2189 Rubber 2.5dBi Dipole (Standard)
  • Power Supply: Add 10-0367 115 / 220 VAC 24VDC @ 600 Watts
  • Auxillary Relay Option: No (Standard)
  • Option 1: None
  • Option 2: None
  • Option 3: None
  • Option 4: None
  • Option 5: None
  • Option 6: None

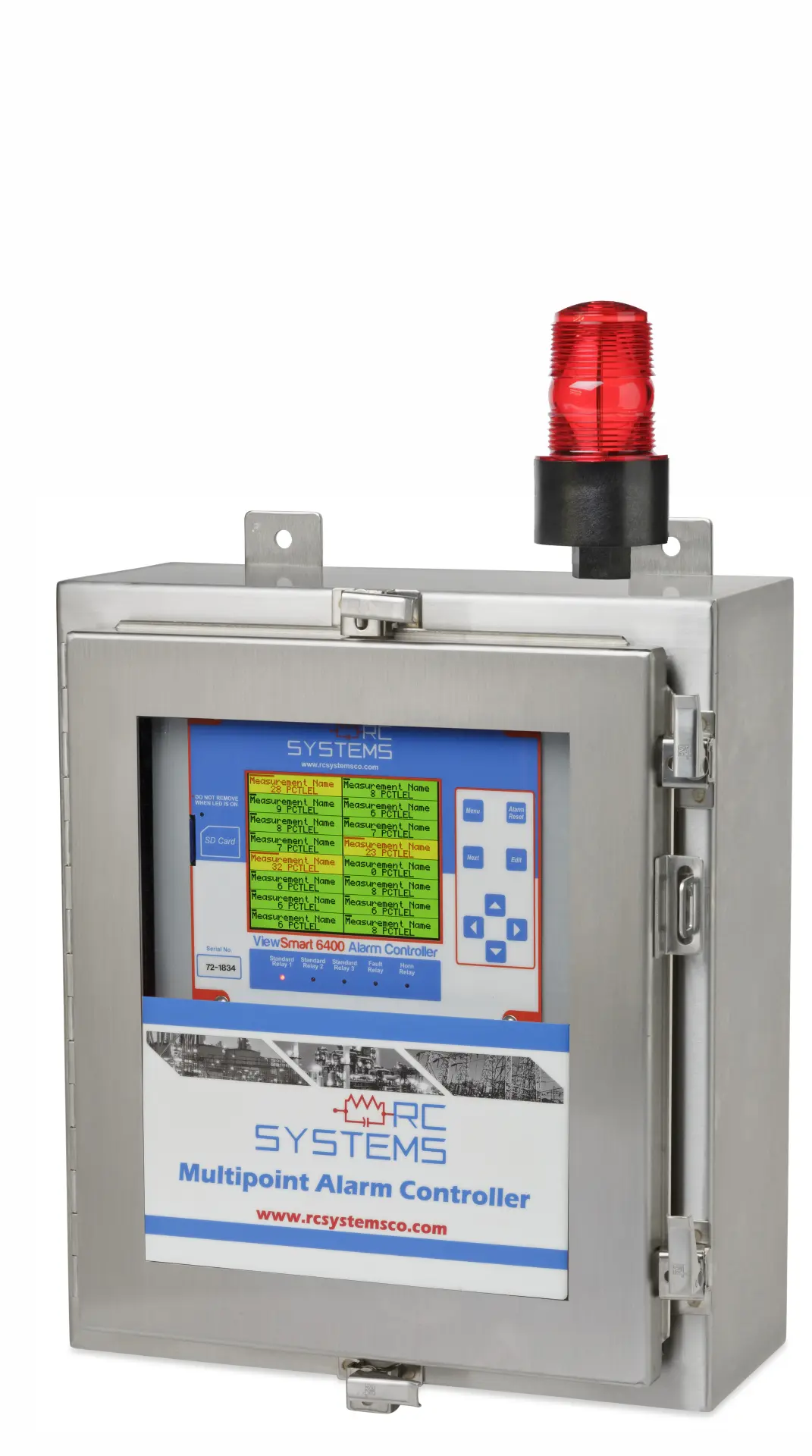

  • Local Alarm 1: 1000-2810 General Purpose Red Strobe Locally Mounted
  • Local Alarm 2: None
  • Expansion Plate/Enclosure: Add 0010-1323 Compact Expansion Plate (Adds Qty 1 Option Board)
  • Expansion Option 1: 10-0344 AI for 16 4-20mA Inputs
  • Expansion Option 2: Requires 10-0501 Large Fiberglass Expansion Enclosure
  • Expansion Option 3: Requires 10-0501 Large Fiberglass Expansion Enclosure
  • Expansion Option 4: Requires 10-0501 Large Fiberglass Expansion Enclosure
