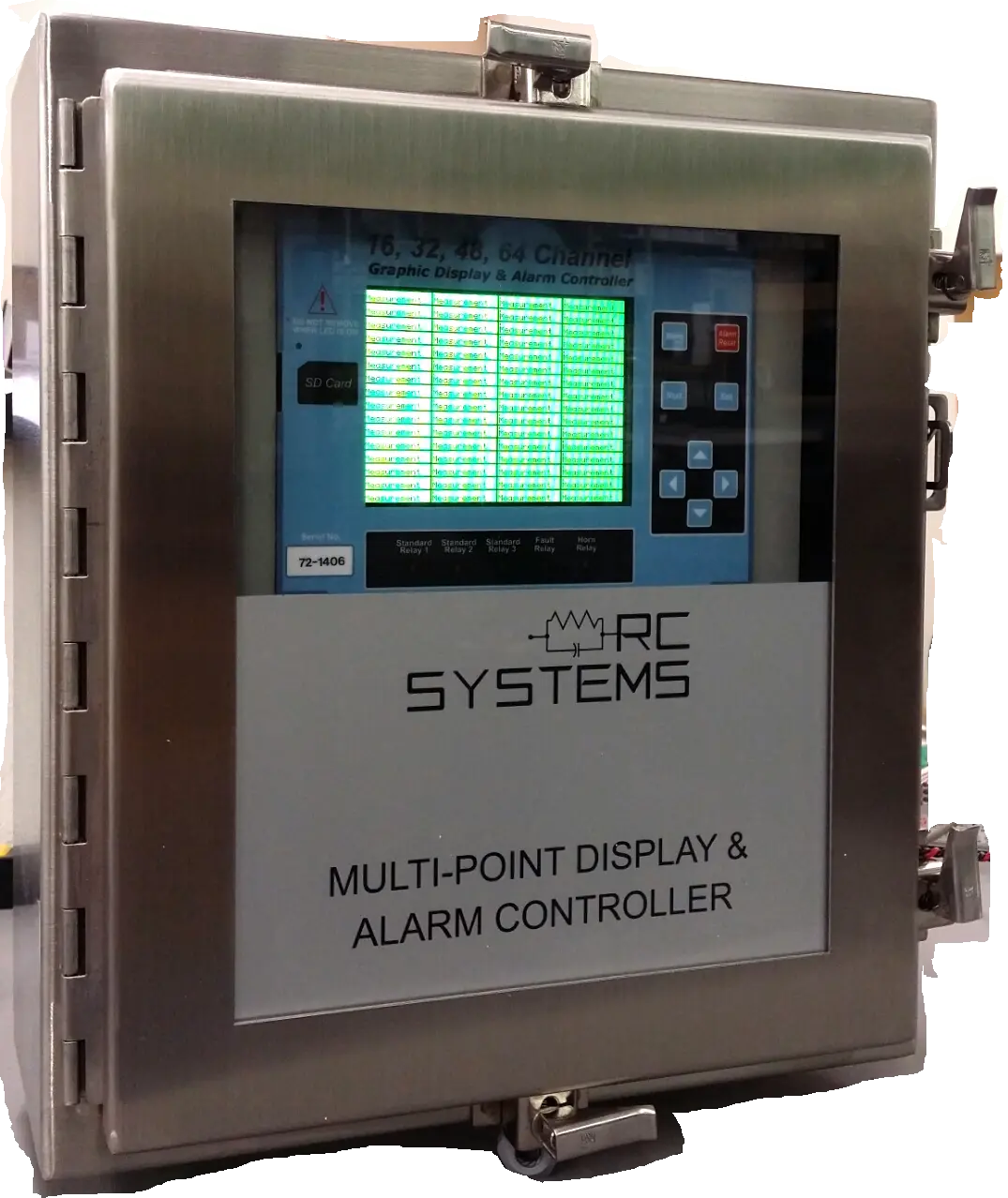

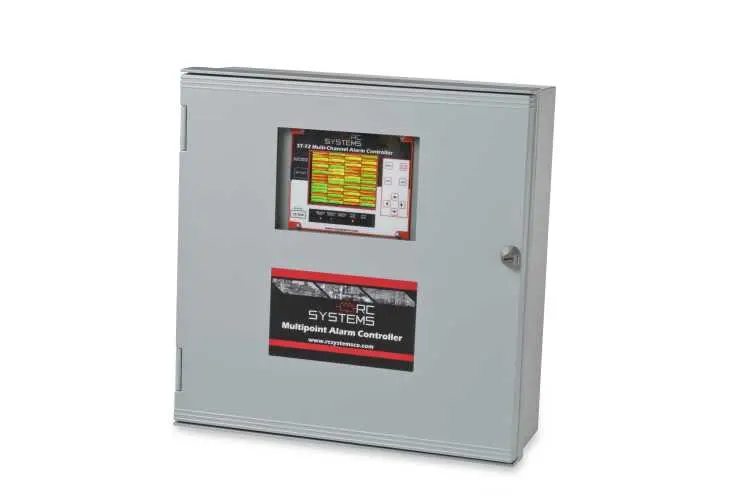

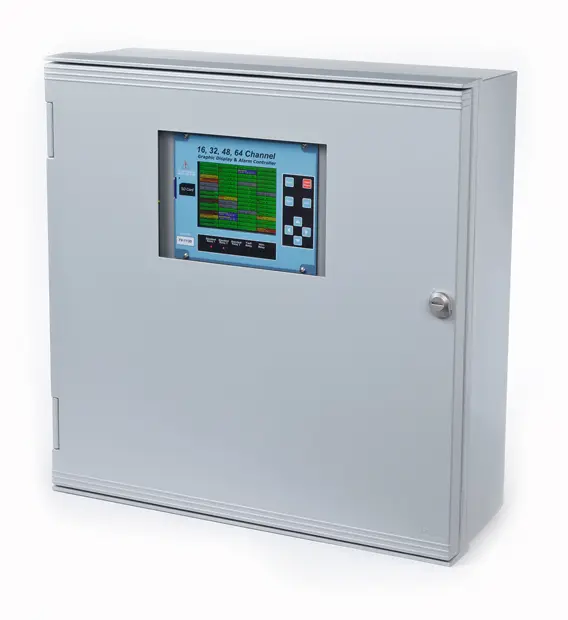

ST-72 64-Channel Alarm Controller
[ST72-4-0232-21-111140-10-0]

  • ST-72 64-Channel Alarm Controller

The ST-72 controller provides simultaneous display and alarm functions for up to 64 input variables. 16-32-48-64 channel display modes, and I/O modules arranged in groups of 16 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications.

Specifications
  • Enclosure: Standard Fiberglass (NEMA 4X)
  • Modbus Option: 900MHZ Dual Port
  • Wireless Modbus Comm Port 1 Antenna: 1000-2310 SS 9 dBi Yagi
  • Wireless Modbus Comm Port 2 Antenna: 10-0289 Fiberglass 8 dBi Collinear
  • Power Supply: Add 10-0367 115 / 220 VAC 24VDC @ 600 Watts
  • Auxillary Relay Option: Yes
  • Option 1: 10-0344 AI for 16 4-20mA Inputs
  • Option 2: 10-0344 AI for 16 4-20mA Inputs
  • Option 3: 10-0344 AI for 16 4-20mA Inputs
  • Option 4: 10-0344 AI for 16 4-20mA Inputs
  • Option 5: 10-0350 with 16 Prog Relays
  • Option 6: None
  • Local Alarm 1: General Purpose Locally Mounted Piezo
  • Local Alarm 2: None
  • Expansion Plate: No Expansion Plate
