ViewSmart 6400 Analog Output Board
[10-0348]

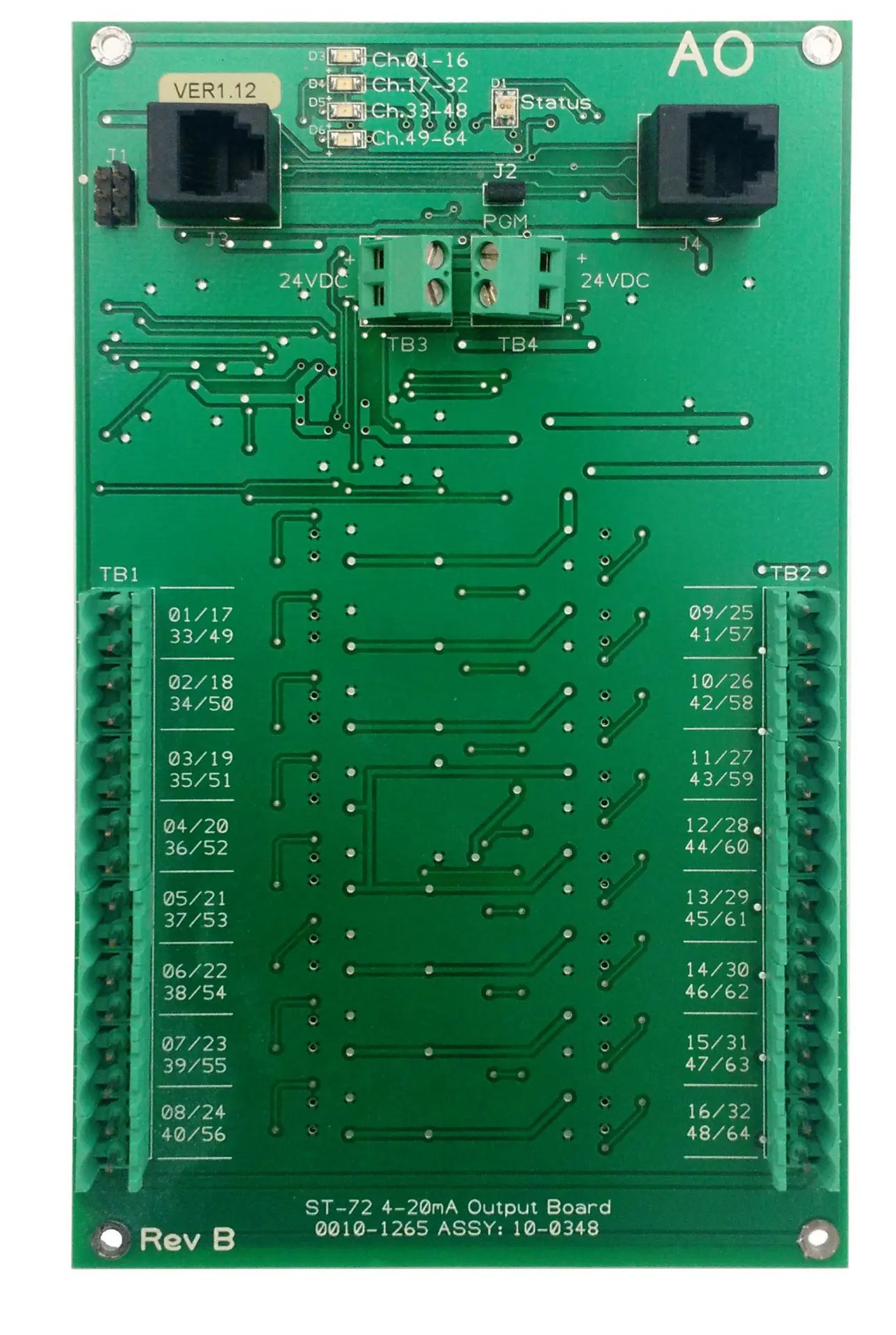

ViewSmart 6400 Analog Output Board
ViewSmart 6400 Analog Output Board

The 10-0348 is a 16 Channel 16 bit Analog Output Option.  10-0348's provide 4-20mA outputs scaled to match the range of each ViewSmart 6400 channel.  Each 10-0348 may be configured for channels 1-16, 17-32, 33-48 and 49-64. With at least 20 volts DC primary power they are capable of driving 20mA through a 750 ohm load. Outputs are self powered and DC power should not be provided by the receiving device.



Specifications
  • Number of Relays: 0
  • Number of Inputs: 16
